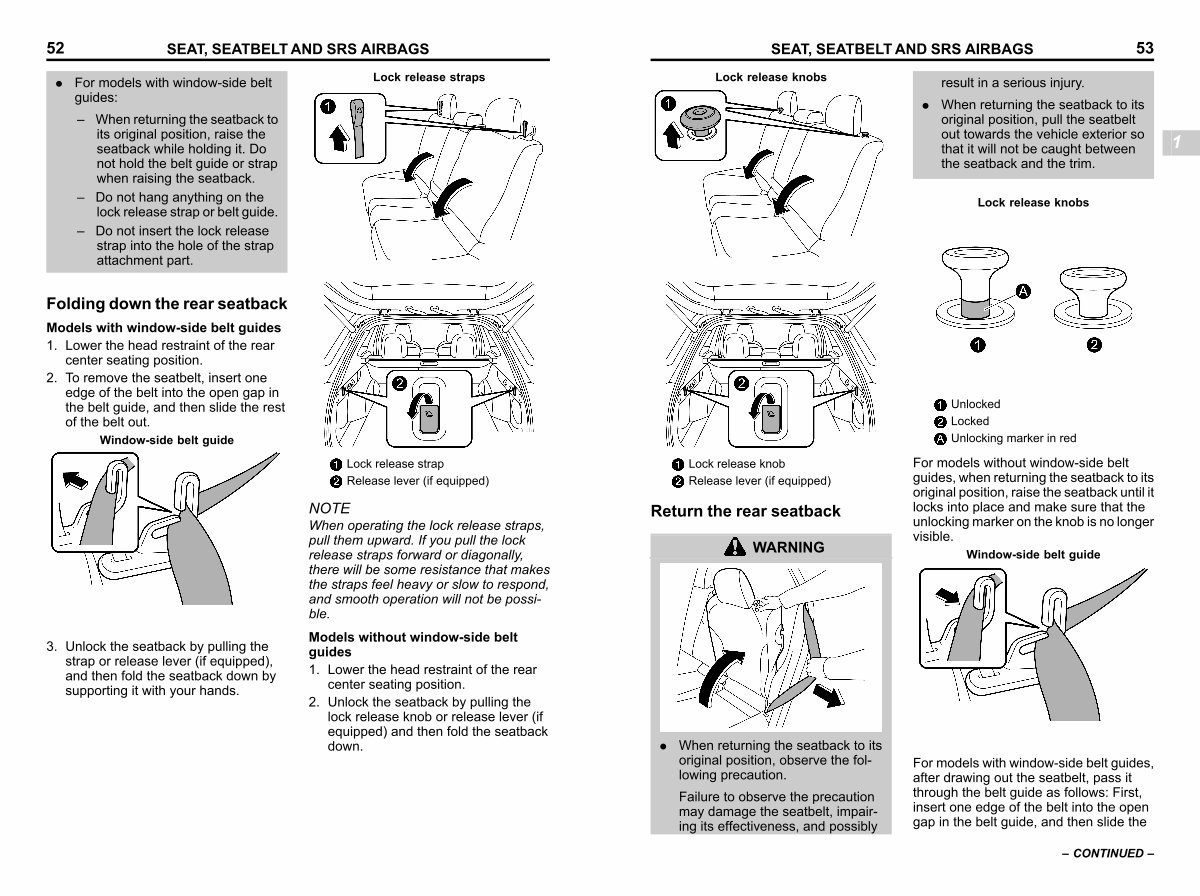

SEAT, SEATBELT AND SRS AIRBAGS 53
Lock release knobs
result in a serious injury.
. When returning the seatback to its original position, pull the seatbelt out towards the vehicle exterior so that it will not be caught between the seatback and the trim.
1
Lock release knobs
S _ 103211-W
Lock release knob Release lever( if equipped)
Return the rear seatback WARNING s01ac0204
Unlocked Locked Unlocking marker in red
S _ 103212-W
For models without window-side belt guides, when returning the seatback to its original position, raise the seatback until it locks into place and make sure that the unlocking marker on the knob is no longer visible.
Window-side belt guide
S _ 103064-W
. When returning the seatback to its original position, observe the following precaution.
Failure to observe the precaution may damage the seatbelt, impairing its effectiveness, and possibly
S _ 103373-W
For models with window-side belt guides, after drawing out the seatbelt, pass it through the belt guide as follows: First, insert one edge of the belt into the open gap in the belt guide, and then slide the
– CONTINUED –
