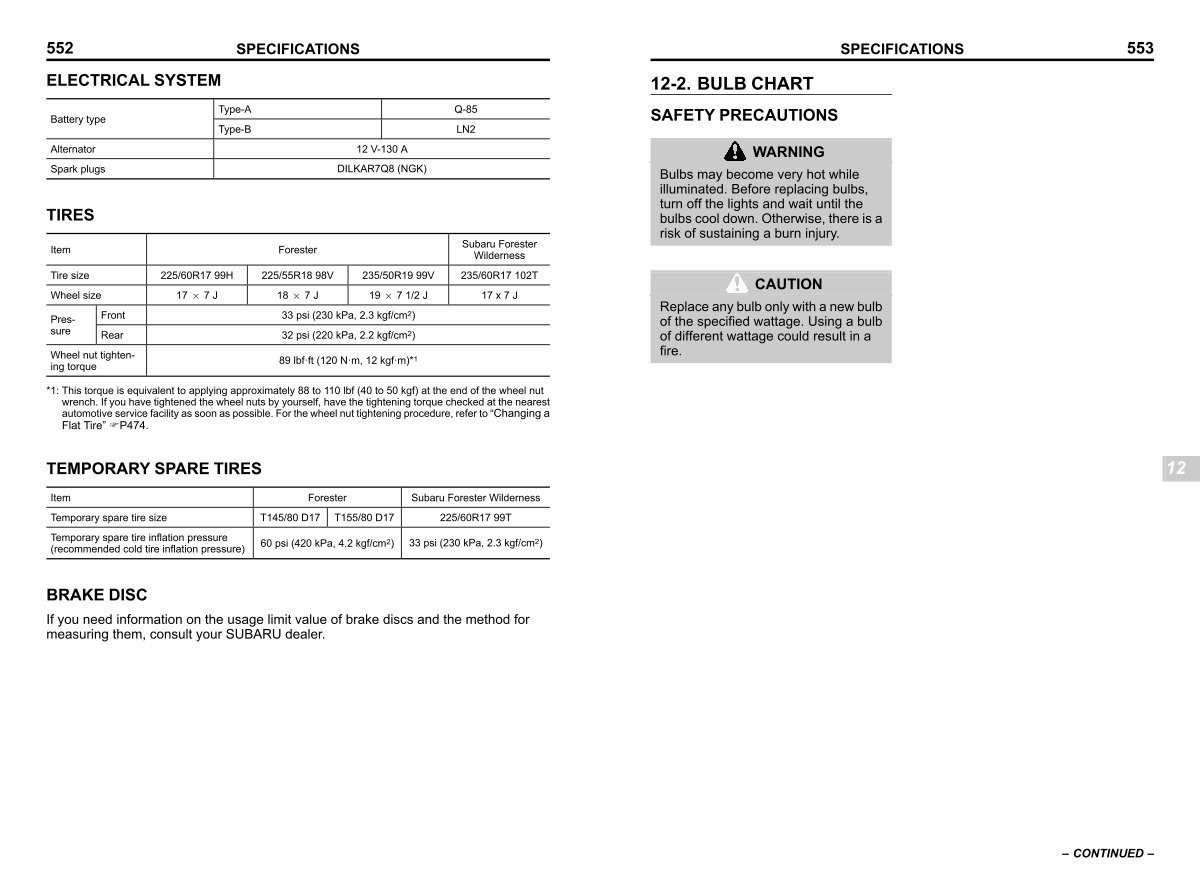

552 SPECIFICATIONS
ELECTRICAL SYSTEM
s12aa03 |
Type-A |
Q-85 |
Battery type |
Type-B |
LN2 |
Alternator |
12 V-130 A |
Spark plugs |
DILKAR7Q8( NGK) |
TIRES
Item s12aa05
Forester
Subaru Forester Wilderness
Tire size 225 / 60R17 99H 225 / 55R18 98V 235 / 50R19 99V 235 / 60R17 102T Wheel size 17 6 7 J 18 6 7 J 19 6 7 1 / 2 J 17 x 7 J
Pressure
Wheel nut tightening torque
Front 33 psi( 230 kPa, 2.3 kgf / cm 2) Rear 32 psi( 220 kPa, 2.2 kgf / cm 2)
89 lbf · ft( 120 N · m, 12 kgf · m)* 1
* 1: This torque is equivalent to applying approximately 88 to 110 lbf( 40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening procedure, refer to“ Changing a Flat Tire” FP474.
TEMPORARY SPARE TIRES
|
|
s12aa15 |
Item |
Forester |
Subaru Forester Wilderness |
Temporary spare tire size T145 / 80 D17 T155 / 80 D17 225 / 60R17 99T
Temporary spare tire inflation pressure( recommended cold tire inflation pressure)
60 psi( 420 kPa, 4.2 kgf / cm 2) 33 psi( 230 kPa, 2.3 kgf / cm 2)
BRAKE DISC s12aa18
If you need information on the usage limit value of brake discs and the method for measuring them, consult your SUBARU dealer.
