MAINTENANCE AND SERVICE 543
1. Take out the emergency key.
4. Insert a new battery with its positive(+) side facing upward as shown in the figure.
Release button Emergency key
S _ 204470-MW
2. Wrap a flat-head screwdriver with vinyl tape or a cloth, and insert it in the gap to remove the cover.
S _ B02413-MW
5. Attach the cover to the access key fob by fitting the projections and recesses together.
11
S _ B02411-MW
3. Take out the battery using a flat-head screwdriver with vinyl tape or a cloth.
S _ B02414-MW

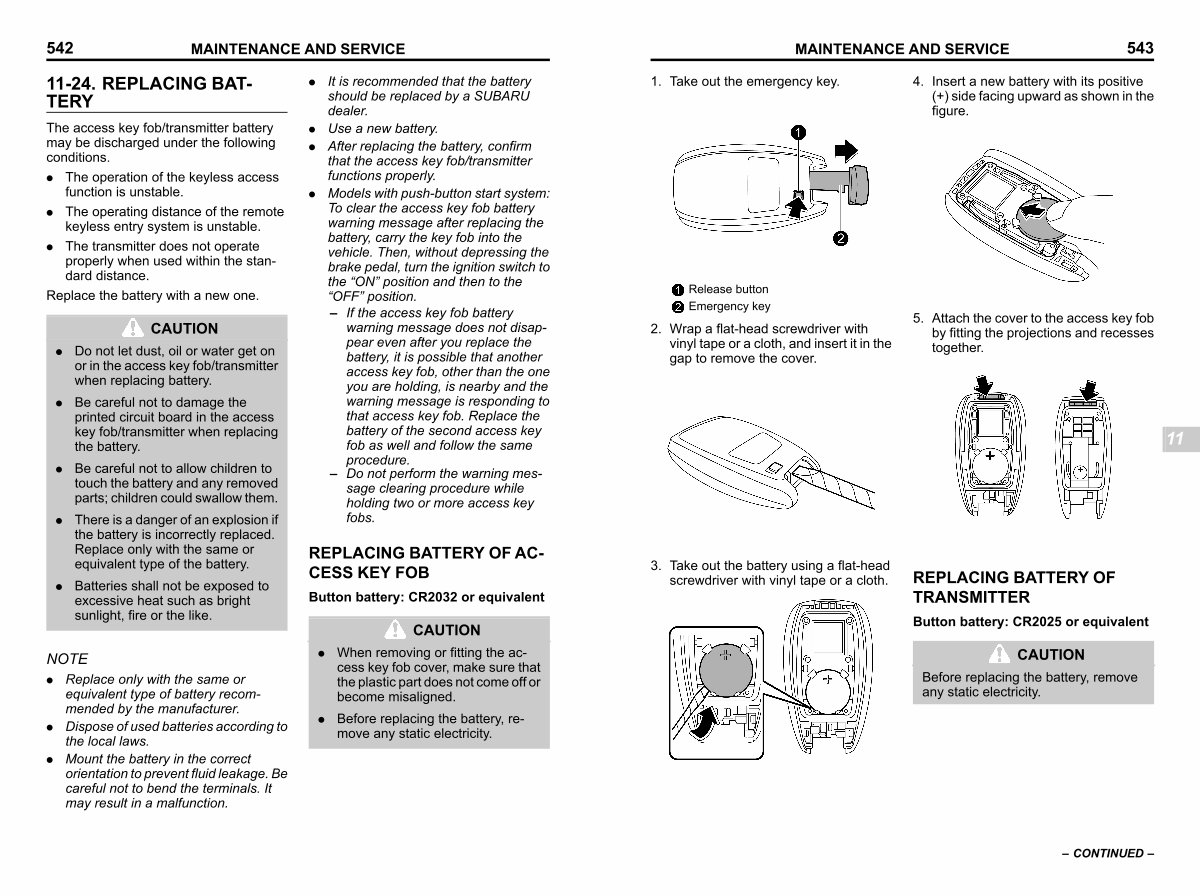

REPLACING BATTERY OF TRANSMITTER s11bk02
Button battery: CR2025 or equivalent
CAUTION
Before replacing the battery, remove any static electricity.
S _ B02412-MW
– CONTINUED –
