STARTING AND OPERATING 421

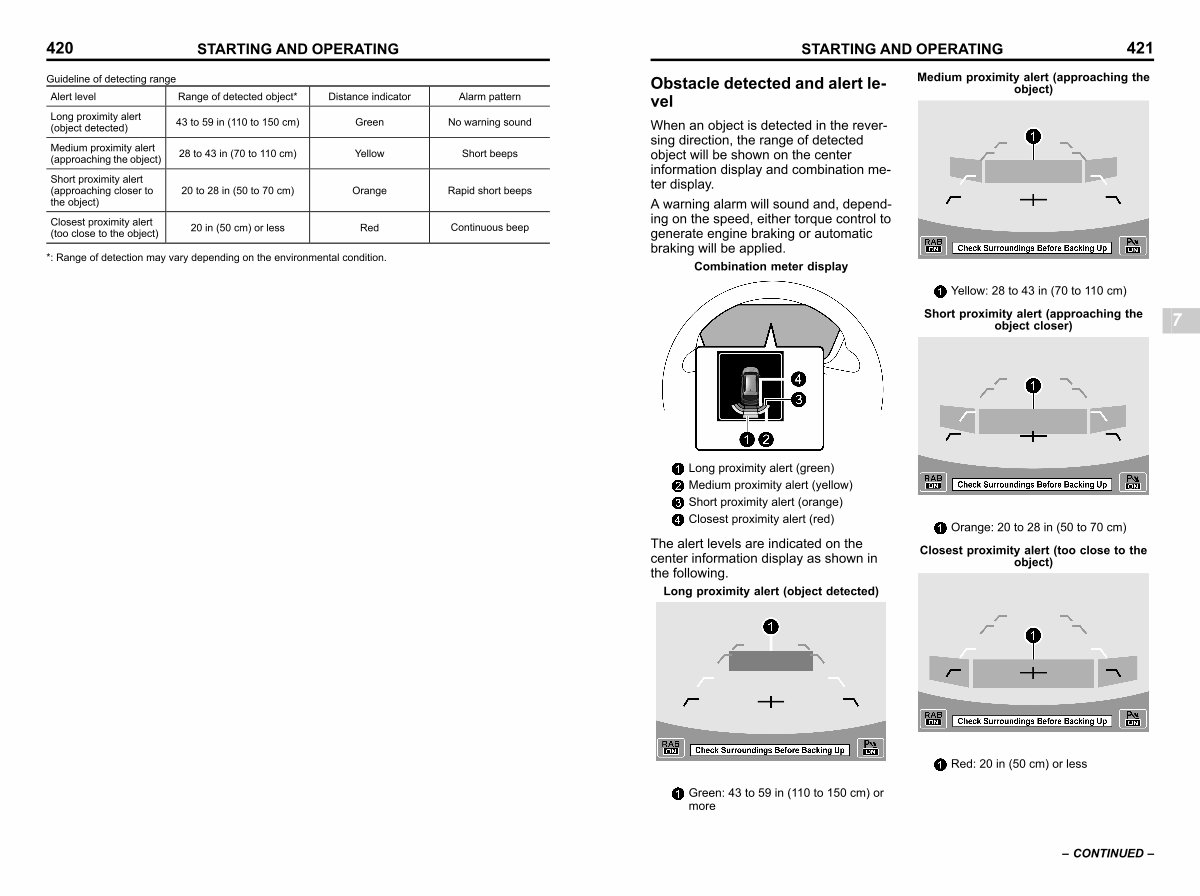

Obstacle detected and alert level s07bn0301
When an object is detected in the reversing direction, the range of detected object will be shown on the center information display and combination meter display.
A warning alarm will sound and, depending on the speed, either torque control to generate engine braking or automatic braking will be applied.
Combination meter display
Medium proximity alert( approaching the object)
S _ 703298-W
Yellow: 28 to 43 in( 70 to 110 cm)
Short proximity alert( approaching the object closer)
7
S _ 703357-W
Long proximity alert( green) Medium proximity alert( yellow) Short proximity alert( orange) Closest proximity alert( red)
The alert levels are indicated on the center information display as shown in the following.
Long proximity alert( object detected)
S _ 703299-W
Orange: 20 to 28 in( 50 to 70 cm)
Closest proximity alert( too close to the object)
S _ 703297-W
Green: 43 to 59 in( 110 to 150 cm) or more
Red: 20 in( 50 cm) or less
S _ 703300-W
– CONTINUED –
