STARTING AND OPERATING 405

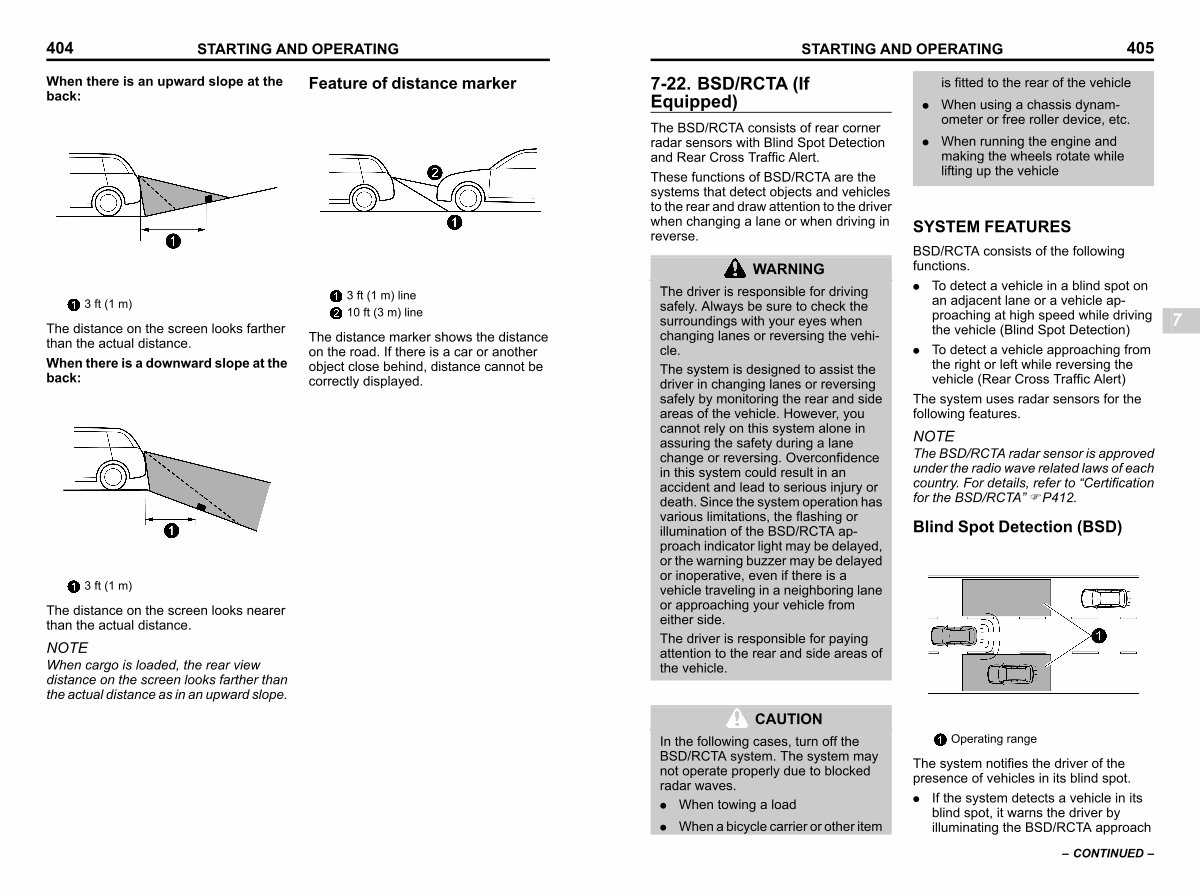

7-22. BSD / RCTA( If Equipped) s07bm
The BSD / RCTA consists of rear corner radar sensors with Blind Spot Detection and Rear Cross Traffic Alert.
These functions of BSD / RCTA are the systems that detect objects and vehicles to the rear and draw attention to the driver when changing a lane or when driving in reverse.
WARNING
The driver is responsible for driving safely. Always be sure to check the surroundings with your eyes when changing lanes or reversing the vehicle.
The system is designed to assist the driver in changing lanes or reversing safely by monitoring the rear and side areas of the vehicle. However, you cannot rely on this system alone in assuring the safety during a lane change or reversing. Overconfidence in this system could result in an accident and lead to serious injury or death. Since the system operation has various limitations, the flashing or illumination of the BSD / RCTA approach indicator light may be delayed, or the warning buzzer may be delayed or inoperative, even if there is a vehicle traveling in a neighboring lane or approaching your vehicle from either side.
The driver is responsible for paying attention to the rear and side areas of the vehicle.
is fitted to the rear of the vehicle
. When using a chassis dynamometer or free roller device, etc.
. When running the engine and making the wheels rotate while lifting up the vehicle
SYSTEM FEATURES s07bm01
BSD / RCTA consists of the following functions.
. To detect a vehicle in a blind spot on an adjacent lane or a vehicle approaching at high speed while driving the vehicle( Blind Spot Detection)
. To detect a vehicle approaching from the right or left while reversing the vehicle( Rear Cross Traffic Alert)
The system uses radar sensors for the following features.
NOTE
The BSD / RCTA radar sensor is approved under the radio wave related laws of each country. For details, refer to“ Certification for the BSD / RCTA” FP412.
Blind Spot Detection( BSD) s07bm0101
7
CAUTION
In the following cases, turn off the BSD / RCTA system. The system may not operate properly due to blocked radar waves.
. When towing a load. When a bicycle carrier or other item
Operating range
S _ 703284-MW
The system notifies the driver of the presence of vehicles in its blind spot.
. If the system detects a vehicle in its blind spot, it warns the driver by illuminating the BSD / RCTA approach
– CONTINUED –
