398
STARTING AND OPERATING
display. For information about turning this function on / off, refer to“ Settings icon( General settings)” FP238. For details about X-MODE, refer to“ X-MODE” FP371.
– When X-MODE is on and the vehicle speed decreases to less than 9 mph( 15 km / h), the Front View Monitor turns on automatically. – When the vehicle speed increases
to 13 mph( 20 km / h) or more, the Front View Monitor will not be shown( it will be canceled). When the vehicle speed decreases to less than 9 mph( 15 km / h), the Front View Monitor will turn on
again. – If you manually turn off the Front
View Monitor switch while X-MODE is on, the Front View Monitor will not automatically turn on when the vehicle speed decreases to less than 9 mph( 15
km / h). – While X-MODE is off, the Front
View Monitor will not turn on automatically. – When X-MODE is turned off, the
Front View Monitor will turn off simultaneously.
HOW TO CANCEL THE FRONT |
VIEW MONITOR |
s07bq02 |
Manual cancellation |
s07bq0201 |
The Front View Monitor will be canceled |
by either of the following operations. |
. |
Press the front view monitor switch |
|
again. |
|
. |
Touch |
( car settings icon). |
. |
Touch |
( HOME). |
. |
Touch |
( driver profiles icon). |
Automatic cancellation s07bq0202
If any of the following conditions are met, the Front View Monitor is canceled automatically.
After accessing the Front View Monitor by pressing the front view monitor switch:
. Approximately 3 minutes have passed since the last operation.
. The vehicle speed becomes 13 mph( 20 km / h) or higher.
. The select lever is shifted to the“ P” position.
. Pulling up the parking brake switch with the brake pedal depressed to apply the parking brake.

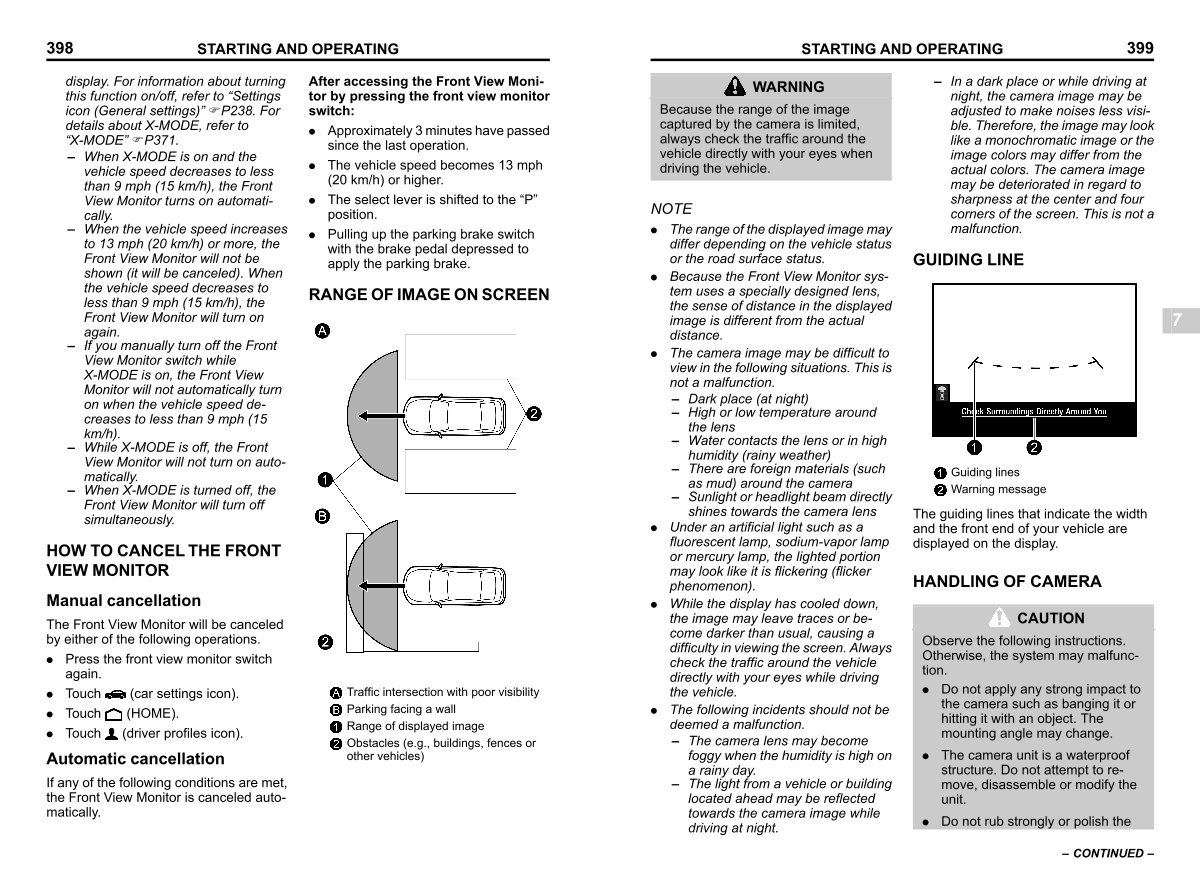

RANGE OF IMAGE ON SCREEN s07bq03
S _ 703601-W
Traffic intersection with poor visibility Parking facing a wall Range of displayed image
Obstacles( e. g., buildings, fences or other vehicles)
