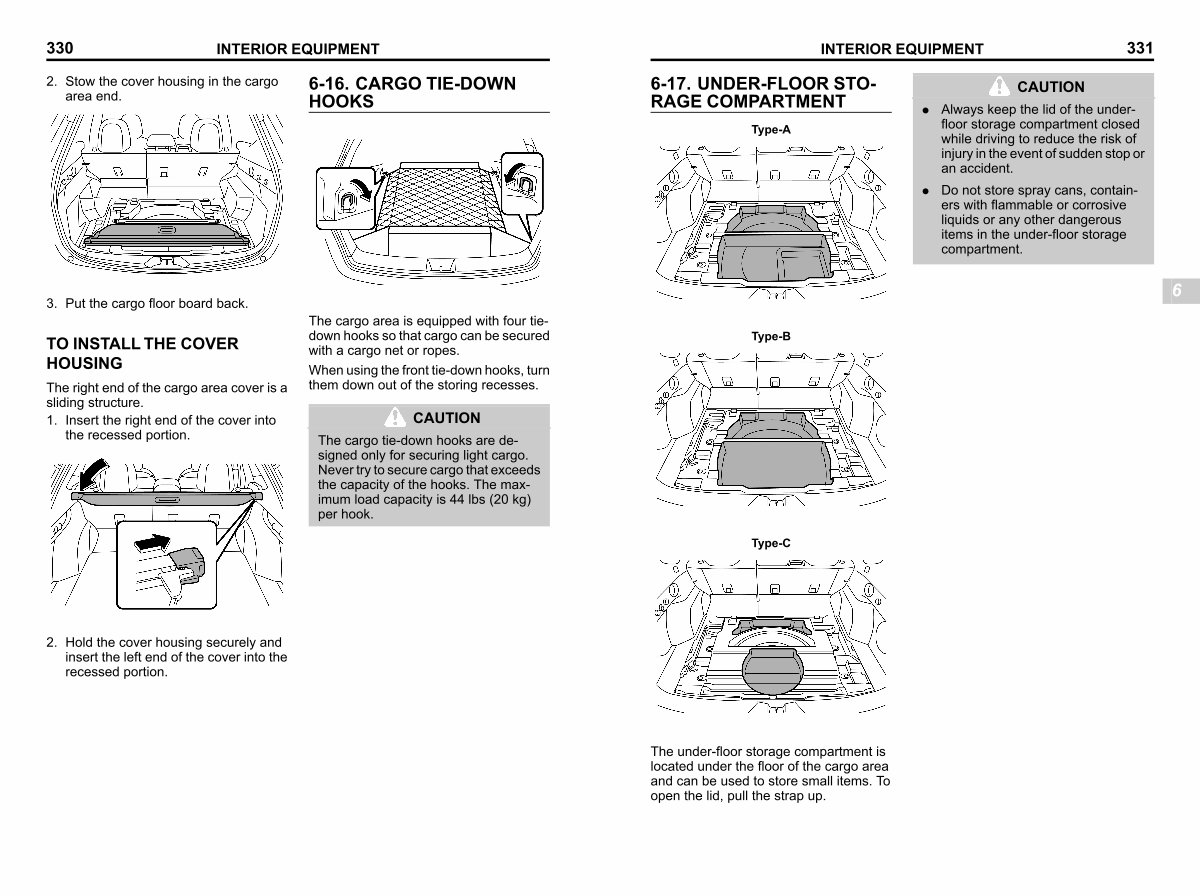

330
INTERIOR EQUIPMENT
2. Stow the cover housing in the cargo area end.
6-16. CARGO TIE-DOWN HOOKS s06am
3. Put the cargo floor board back.
S _ 602672-W
TO INSTALL THE COVER HOUSING s06ak05
The right end of the cargo area cover is a sliding structure.
1. Insert the right end of the cover into the recessed portion.
S _ 602675-W
The cargo area is equipped with four tiedown hooks so that cargo can be secured with a cargo net or ropes.
When using the front tie-down hooks, turn them down out of the storing recesses.
CAUTION
The cargo tie-down hooks are designed only for securing light cargo. Never try to secure cargo that exceeds the capacity of the hooks. The maximum load capacity is 44 lbs( 20 kg) per hook.
S _ 602674-W
2. Hold the cover housing securely and insert the left end of the cover into the recessed portion.
