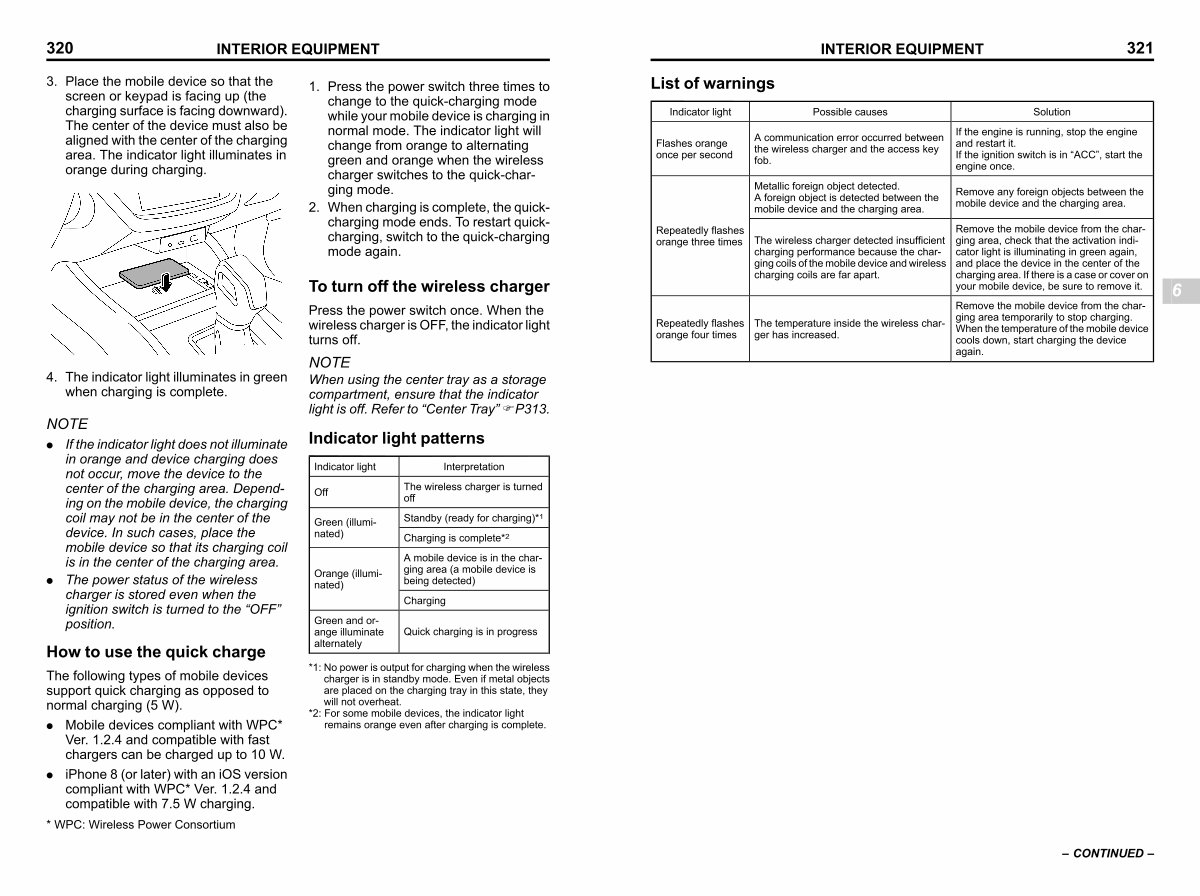

INTERIOR EQUIPMENT 321
List of warnings
|
s06bh0103 |
|
Indicator light |
Possible causes |
Solution |
Flashes orange once per second
Repeatedly flashes orange three times
Repeatedly flashes orange four times
A communication error occurred between the wireless charger and the access key fob.
Metallic foreign object detected. A foreign object is detected between the mobile device and the charging area.
The wireless charger detected insufficient charging performance because the charging coils of the mobile device and wireless charging coils are far apart.
The temperature inside the wireless charger has increased.
If the engine is running, stop the engine and restart it. If the ignition switch is in“ ACC”, start the engine once.
Remove any foreign objects between the mobile device and the charging area.
Remove the mobile device from the charging area, check that the activation indicator light is illuminating in green again, and place the device in the center of the charging area. If there is a case or cover on your mobile device, be sure to remove it.
Remove the mobile device from the charging area temporarily to stop charging. When the temperature of the mobile device cools down, start charging the device again.
6
– CONTINUED –
