302
CLIMATE CONTROL

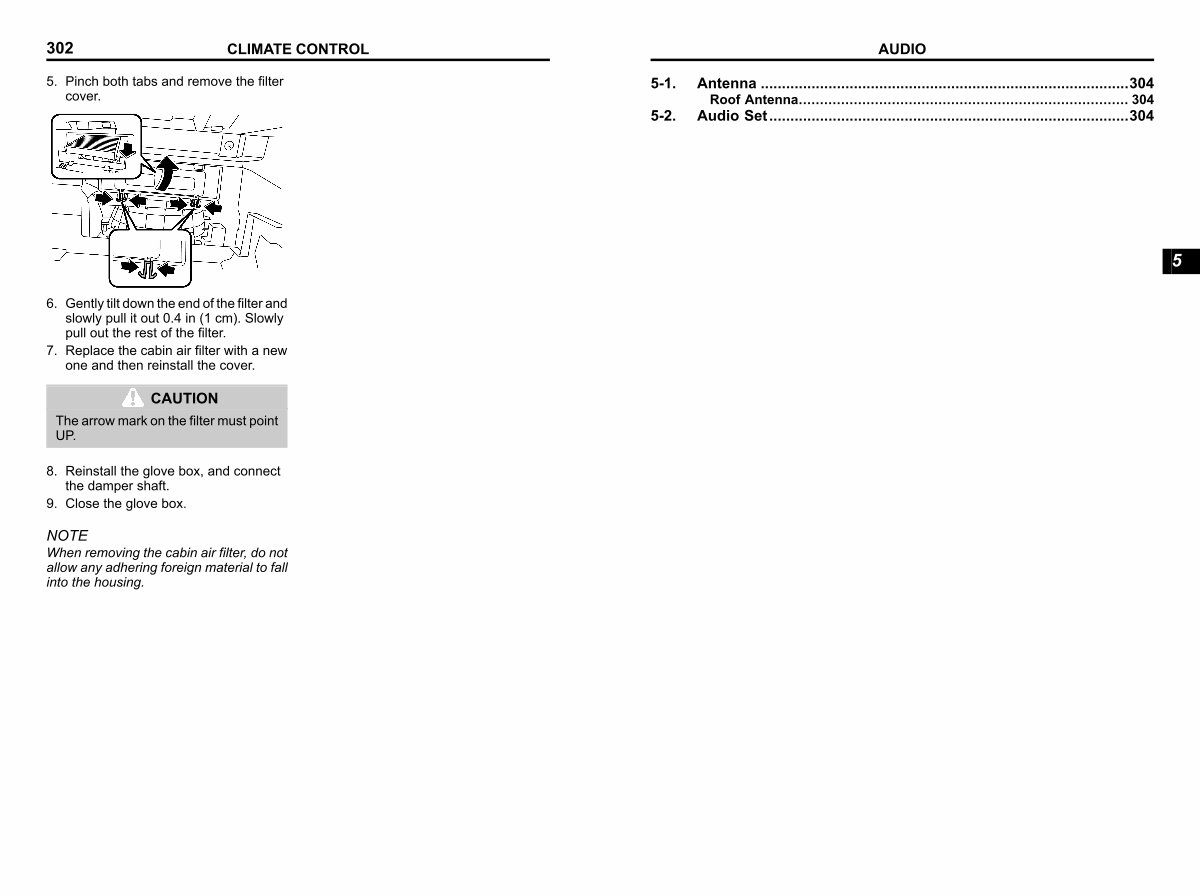

5. Pinch both tabs and remove the filter cover.
S _ 403831-W
6. Gently tilt down the end of the filter and slowly pull it out 0.4 in( 1 cm). Slowly pull out the rest of the filter.
7. Replace the cabin air filter with a new one and then reinstall the cover.
CAUTION
The arrow mark on the filter must point UP.
8. Reinstall the glove box, and connect the damper shaft.
9. Close the glove box.
NOTE
When removing the cabin air filter, do not allow any adhering foreign material to fall into the housing.
