CLIMATE CONTROL 299

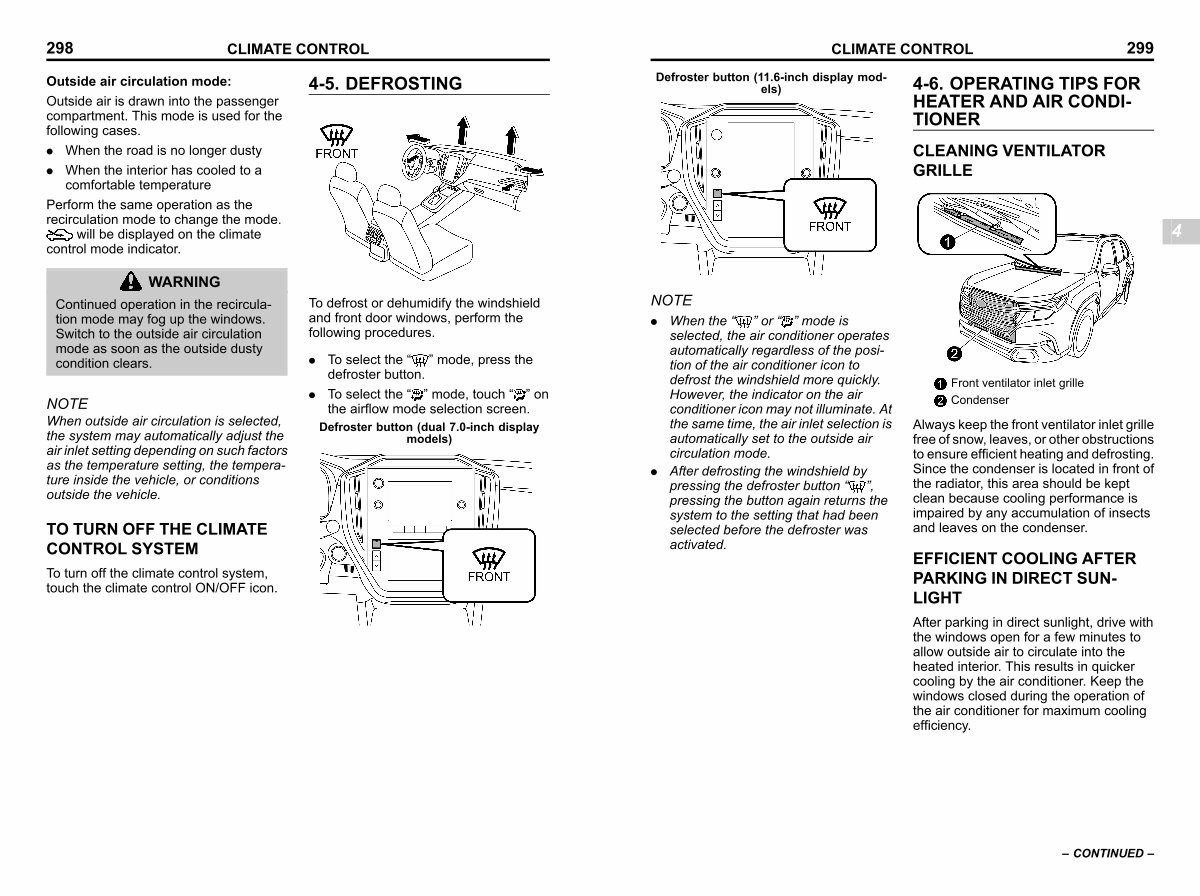

Defroster button( 11.6-inch display models)
4-6. OPERATING TIPS FOR HEATER AND AIR CONDI- TIONER
CLEANING VENTILATOR GRILLE s04ad
s04ad01
4
S _ 403999-W
NOTE
. When the“” or“” mode is selected, the air conditioner operates automatically regardless of the position of the air conditioner icon to defrost the windshield more quickly. However, the indicator on the air conditioner icon may not illuminate. At the same time, the air inlet selection is automatically set to the outside air circulation mode.
. After defrosting the windshield by pressing the defroster button“”, pressing the button again returns the system to the setting that had been selected before the defroster was activated.
Front ventilator inlet grille Condenser
S _ 403896-W
Always keep the front ventilator inlet grille free of snow, leaves, or other obstructions to ensure efficient heating and defrosting. Since the condenser is located in front of the radiator, this area should be kept clean because cooling performance is impaired by any accumulation of insects and leaves on the condenser.
EFFICIENT COOLING AFTER PARKING IN DIRECT SUN- LIGHT s04ad02
After parking in direct sunlight, drive with the windows open for a few minutes to allow outside air to circulate into the heated interior. This results in quicker cooling by the air conditioner. Keep the windows closed during the operation of the air conditioner for maximum cooling efficiency.
– CONTINUED –
