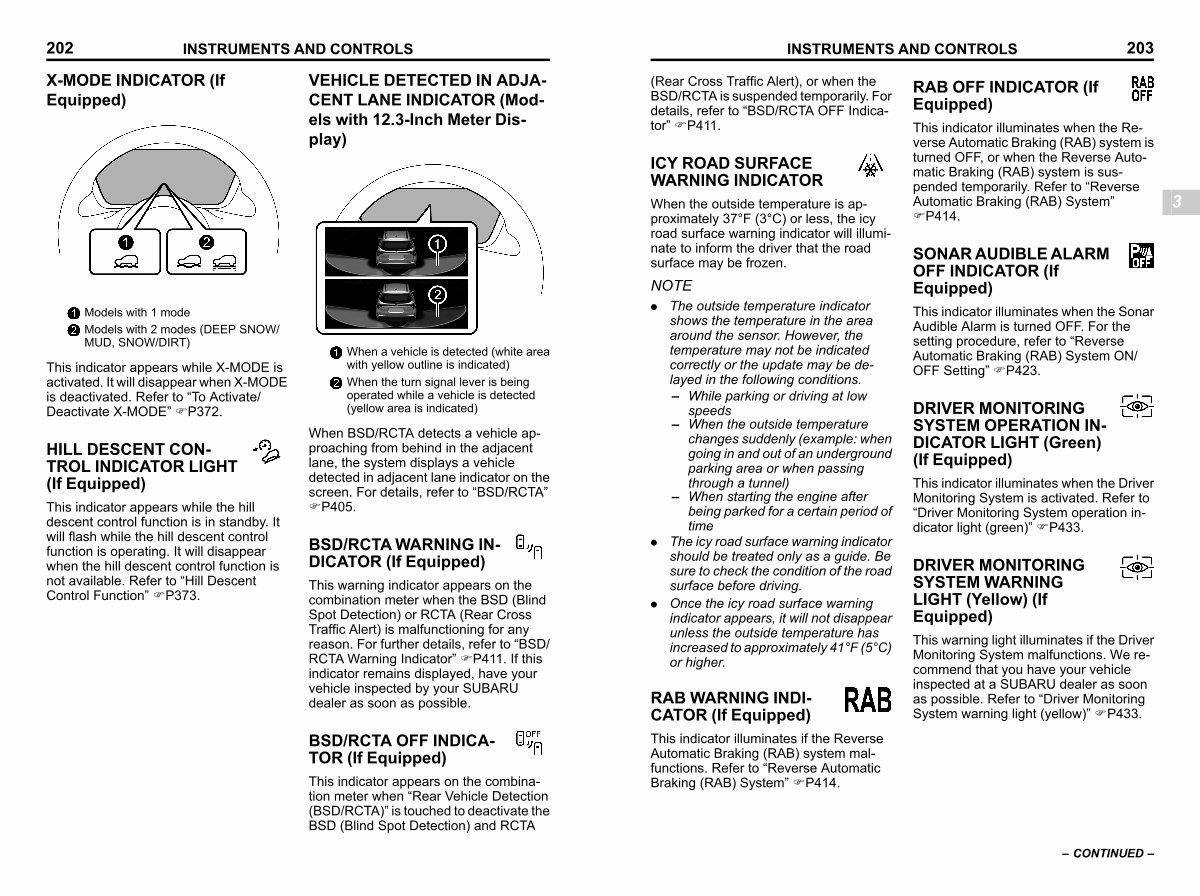

INSTRUMENTS AND CONTROLS 203
( Rear Cross Traffic Alert), or when the BSD / RCTA is suspended temporarily. For details, refer to“ BSD / RCTA OFF Indicator” FP411.
ICY ROAD SURFACE WARNING INDICATOR s03ae82
When the outside temperature is approximately 37 ° F( 3 ° C) or less, the icy road surface warning indicator will illuminate to inform the driver that the road surface may be frozen.
NOTE
. The outside temperature indicator shows the temperature in the area around the sensor. However, the temperature may not be indicated correctly or the update may be delayed in the following conditions.
– While parking or driving at low
speeds – When the outside temperature
changes suddenly( example: when going in and out of an underground parking area or when passing
through a tunnel) – When starting the engine after
being parked for a certain period of time
. The icy road surface warning indicator should be treated only as a guide. Be sure to check the condition of the road surface before driving.
. Once the icy road surface warning indicator appears, it will not disappear unless the outside temperature has increased to approximately 41 ° F( 5 ° C) or higher.
RAB WARNING INDI- CATOR( If Equipped) s03ae91
This indicator illuminates if the Reverse Automatic Braking( RAB) system malfunctions. Refer to“ Reverse Automatic Braking( RAB) System” FP414.
RAB OFF INDICATOR( If Equipped) s03ae92
This indicator illuminates when the Reverse Automatic Braking( RAB) system is turned OFF, or when the Reverse Automatic Braking( RAB) system is suspended temporarily. Refer to“ Reverse Automatic Braking( RAB) System” FP414.
SONAR AUDIBLE ALARM OFF INDICATOR( If Equipped) s03ae93
This indicator illuminates when the Sonar Audible Alarm is turned OFF. For the setting procedure, refer to“ Reverse Automatic Braking( RAB) System ON / OFF Setting” FP423.
DRIVER MONITORING SYSTEM OPERATION IN- DICATOR LIGHT( Green)( If Equipped) s03aea4
This indicator illuminates when the Driver Monitoring System is activated. Refer to“ Driver Monitoring System operation indicator light( green)” FP433.
DRIVER MONITORING SYSTEM WARNING LIGHT( Yellow)( If Equipped) s03aeb6
This warning light illuminates if the Driver Monitoring System malfunctions. We recommend that you have your vehicle inspected at a SUBARU dealer as soon as possible. Refer to“ Driver Monitoring System warning light( yellow)” FP433.
3
– CONTINUED –
