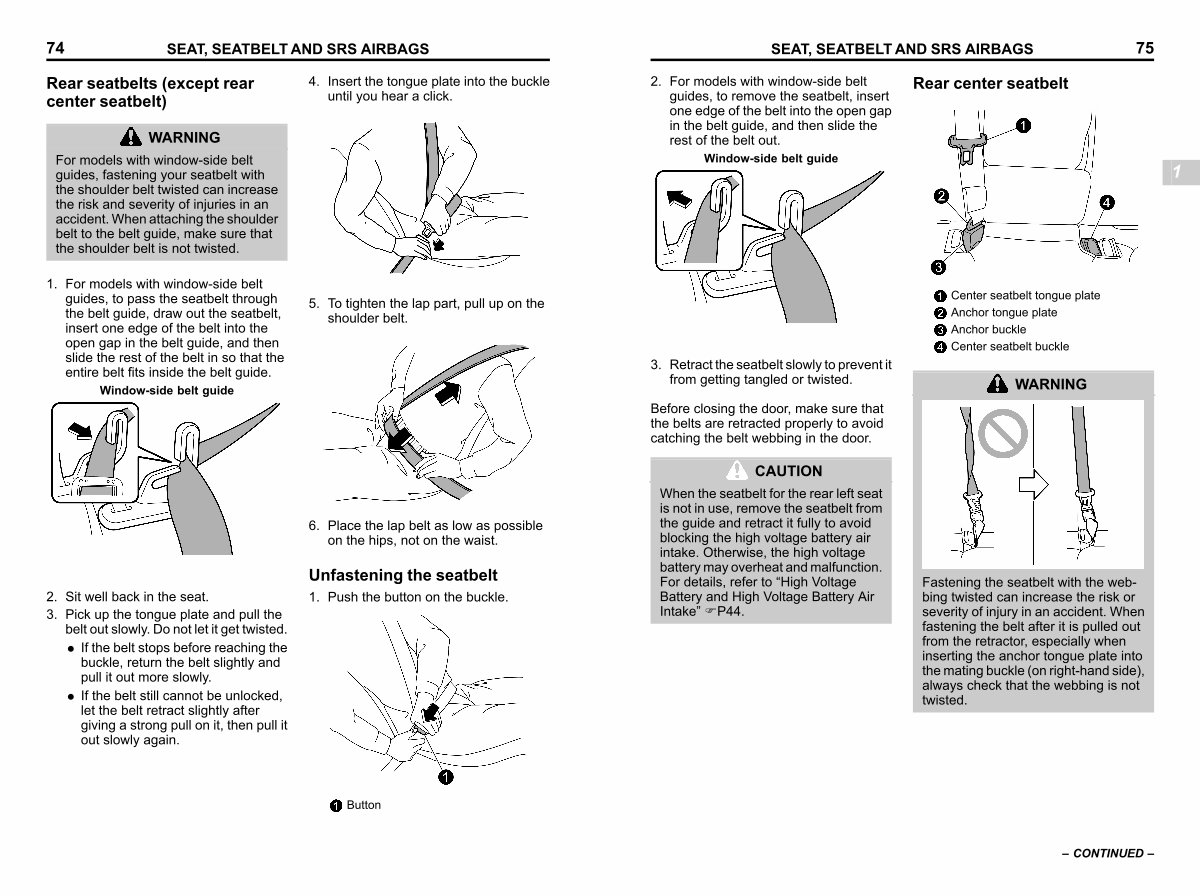

SEAT, SEATBELT AND SRS AIRBAGS 75
|
2. For models with window-side belt guides, to remove the seatbelt, insert one edge of the belt into the open gap in the belt guide, and then slide the rest of the belt out.
Window-side belt guide
|
Rear center seatbelt |
s01ae0603 |
1 |
S _ 103365-W
3. Retract the seatbelt slowly to prevent it from getting tangled or twisted.
Before closing the door, make sure that the belts are retracted properly to avoid catching the belt webbing in the door.
CAUTION
When the seatbelt for the rear left seat is not in use, remove the seatbelt from the guide and retract it fully to avoid blocking the high voltage battery air intake. Otherwise, the high voltage battery may overheat and malfunction. For details, refer to“ High Voltage Battery and High Voltage Battery Air Intake” FP44.
S _ 103220-W
Center seatbelt tongue plate Anchor tongue plate Anchor buckle Center seatbelt buckle
WARNING
S _ 103069-W
Fastening the seatbelt with the webbing twisted can increase the risk or severity of injury in an accident. When fastening the belt after it is pulled out from the retractor, especially when inserting the anchor tongue plate into the mating buckle( on right-hand side), always check that the webbing is not twisted.
– CONTINUED –
