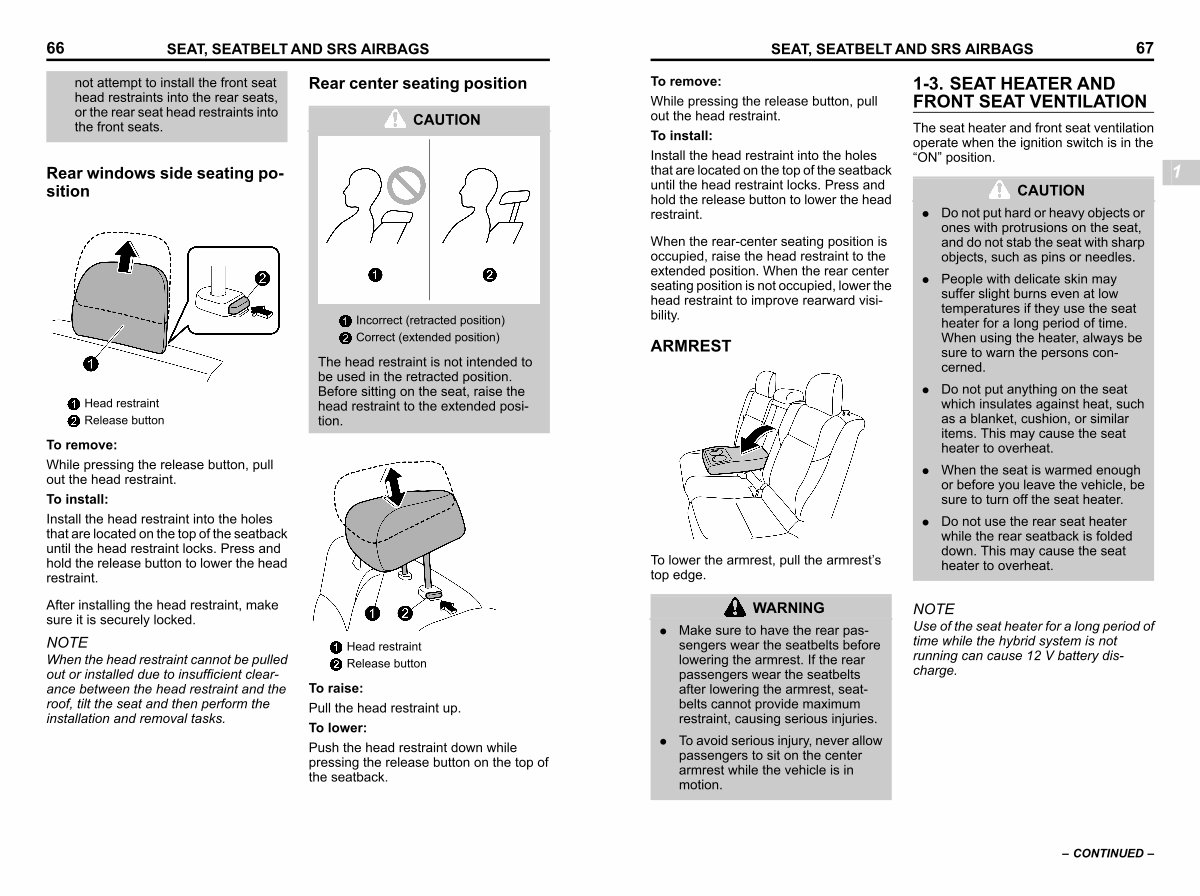

66
SEAT, SEATBELT AND SRS AIRBAGS
not attempt to install the front seat head restraints into the rear seats, or the rear seat head restraints into the front seats.
Rear center seating position s01ac0302
CAUTION
Rear windows side seating position s01ac0301
Head restraint Release button
S _ 103213-W
Incorrect( retracted position) Correct( extended position)
S _ 103214-MW
The head restraint is not intended to be used in the retracted position. Before sitting on the seat, raise the head restraint to the extended position.
To remove:
While pressing the release button, pull out the head restraint.
To install:
Install the head restraint into the holes that are located on the top of the seatback until the head restraint locks. Press and hold the release button to lower the head restraint.
After installing the head restraint, make sure it is securely locked.
NOTE
When the head restraint cannot be pulled out or installed due to insufficient clearance between the head restraint and the roof, tilt the seat and then perform the installation and removal tasks.
Head restraint Release button
S _ 103215-W
To raise: Pull the head restraint up. To lower:
Push the head restraint down while pressing the release button on the top of the seatback.
