496
MAINTENANCE AND SERVICE

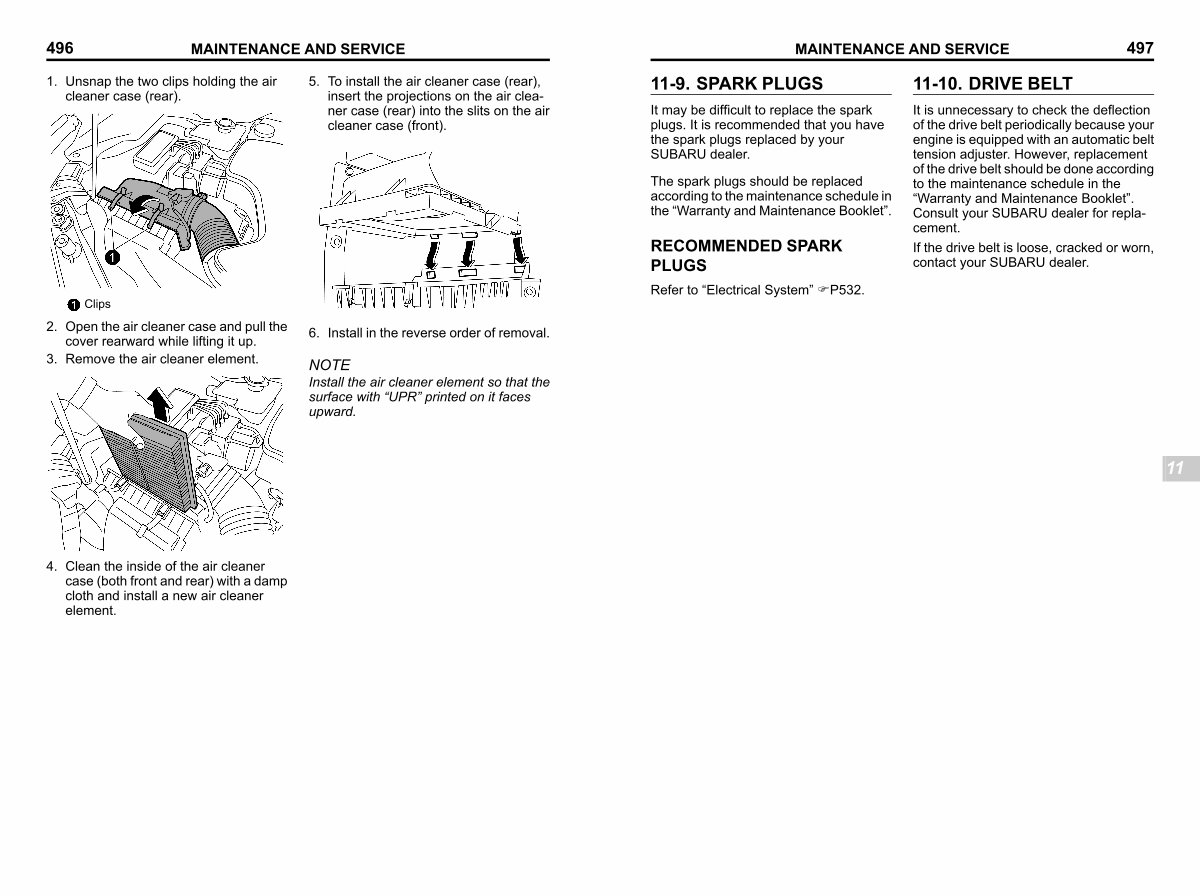

1. Unsnap the two clips holding the air cleaner case( rear).
5. To install the air cleaner case( rear), insert the projections on the air cleaner case( rear) into the slits on the air cleaner case( front).
Clips
S _ B02549-W
2. Open the air cleaner case and pull the cover rearward while lifting it up.
3. Remove the air cleaner element.
S _ B02551-W
6. Install in the reverse order of removal.
NOTE
Install the air cleaner element so that the surface with“ UPR” printed on it faces upward.
S _ B02550-W
4. Clean the inside of the air cleaner case( both front and rear) with a damp cloth and install a new air cleaner element.
