STARTING AND OPERATING 407

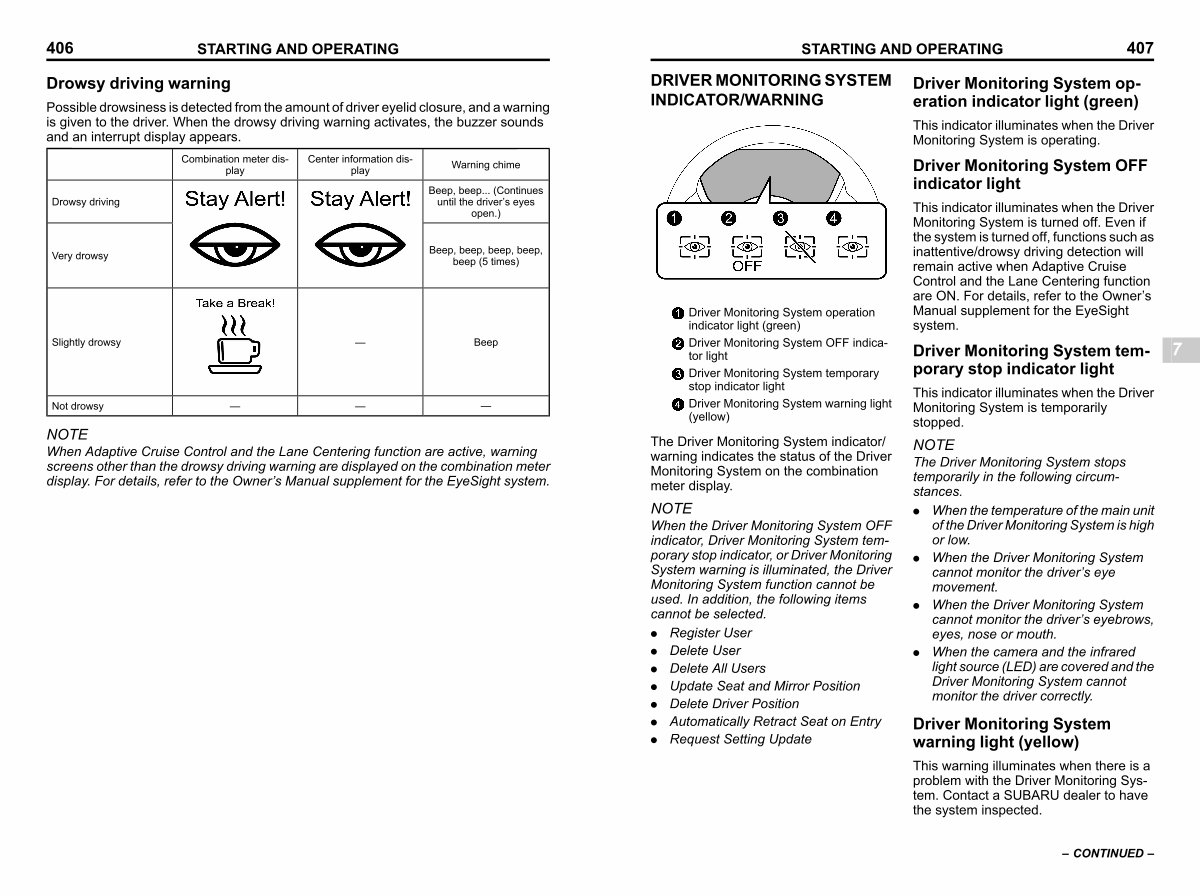

DRIVER MONITORING SYSTEM INDICATOR / WARNING s07bp03
S _ 703361-W
Driver Monitoring System operation indicator light( green)
Driver Monitoring System OFF indicator light
Driver Monitoring System temporary stop indicator light
Driver Monitoring System warning light( yellow)
The Driver Monitoring System indicator / warning indicates the status of the Driver Monitoring System on the combination meter display.
NOTE
When the Driver Monitoring System OFF indicator, Driver Monitoring System temporary stop indicator, or Driver Monitoring System warning is illuminated, the Driver Monitoring System function cannot be used. In addition, the following items cannot be selected.
. Register User. Delete User. Delete All Users. Update Seat and Mirror Position. Delete Driver Position. Automatically Retract Seat on Entry. Request Setting Update
Driver Monitoring System operation indicator light( green) s07bp0301
This indicator illuminates when the Driver Monitoring System is operating.
Driver Monitoring System OFF indicator light s07bp0302
This indicator illuminates when the Driver Monitoring System is turned off. Even if the system is turned off, functions such as inattentive / drowsy driving detection will remain active when Adaptive Cruise Control and the Lane Centering function are ON. For details, refer to the Owner’ s Manual supplement for the EyeSight system.
Driver Monitoring System temporary stop indicator light s07bp0303
This indicator illuminates when the Driver Monitoring System is temporarily stopped.
NOTE
The Driver Monitoring System stops temporarily in the following circumstances.
. When the temperature of the main unit of the Driver Monitoring System is high or low.
. When the Driver Monitoring System cannot monitor the driver’ s eye movement.
. When the Driver Monitoring System cannot monitor the driver’ s eyebrows, eyes, nose or mouth.
. When the camera and the infrared light source( LED) are covered and the Driver Monitoring System cannot monitor the driver correctly.
Driver Monitoring System warning light( yellow) s07bp0304
This warning illuminates when there is a problem with the Driver Monitoring System. Contact a SUBARU dealer to have the system inspected.
7
– CONTINUED –
