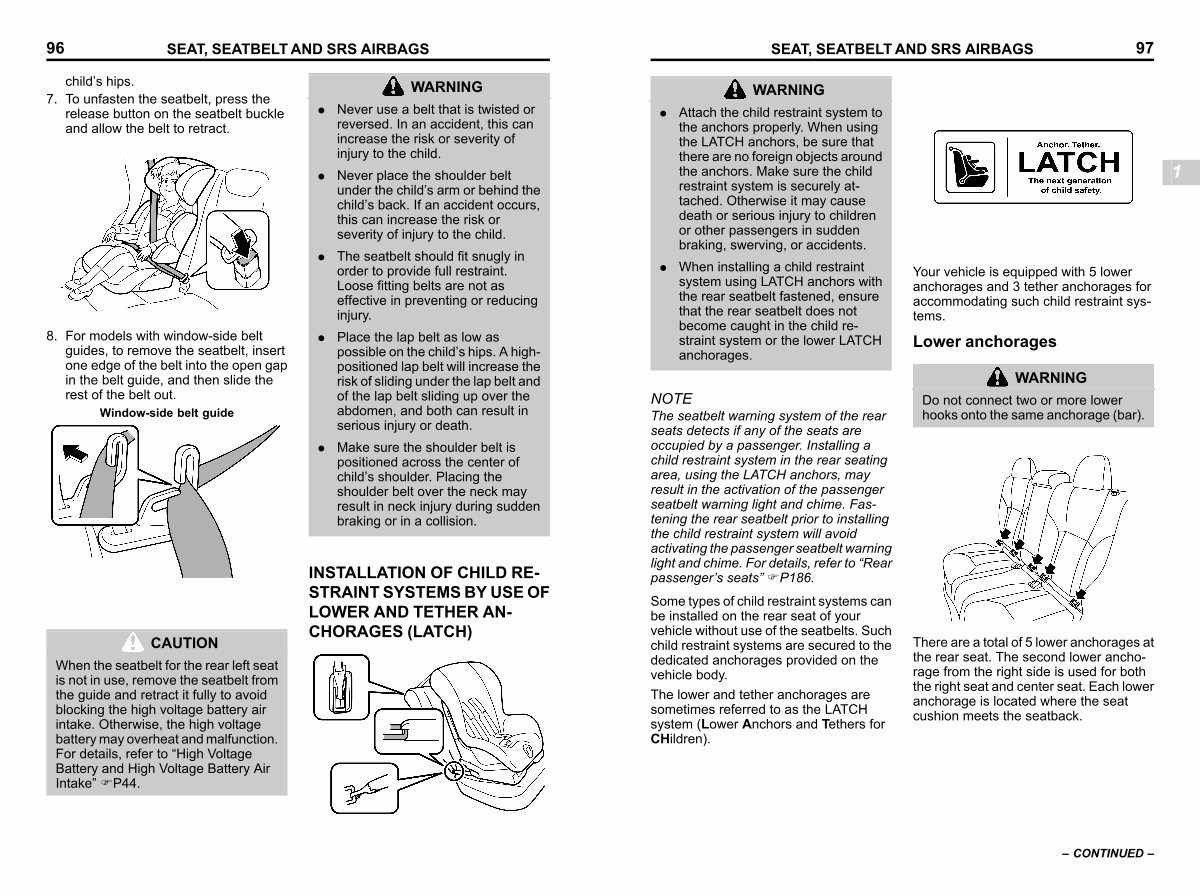

96
SEAT, SEATBELT AND SRS AIRBAGS child’ s hips.
7. To unfasten the seatbelt, press the release button on the seatbelt buckle and allow the belt to retract.
S _ 103108-W
8. For models with window-side belt guides, to remove the seatbelt, insert one edge of the belt into the open gap in the belt guide, and then slide the rest of the belt out.
Window-side belt guide
WARNING
. Never use a belt that is twisted or reversed. In an accident, this can increase the risk or severity of injury to the child.
. Never place the shoulder belt under the child’ s arm or behind the child’ s back. If an accident occurs, this can increase the risk or severity of injury to the child.
. The seatbelt should fit snugly in order to provide full restraint. Loose fitting belts are not as effective in preventing or reducing injury.
. Place the lap belt as low as possible on the child’ s hips. A highpositioned lap belt will increase the risk of sliding under the lap belt and of the lap belt sliding up over the abdomen, and both can result in serious injury or death.
. Make sure the shoulder belt is positioned across the center of child’ s shoulder. Placing the shoulder belt over the neck may result in neck injury during sudden braking or in a collision.
S _ 103365-W
CAUTION
When the seatbelt for the rear left seat is not in use, remove the seatbelt from the guide and retract it fully to avoid blocking the high voltage battery air intake. Otherwise, the high voltage battery may overheat and malfunction. For details, refer to“ High Voltage Battery and High Voltage Battery Air Intake” FP44.
INSTALLATION OF CHILD RE- STRAINT SYSTEMS BY USE OF LOWER AND TETHER AN- CHORAGES( LATCH) s01ag07
S _ 103109-W
