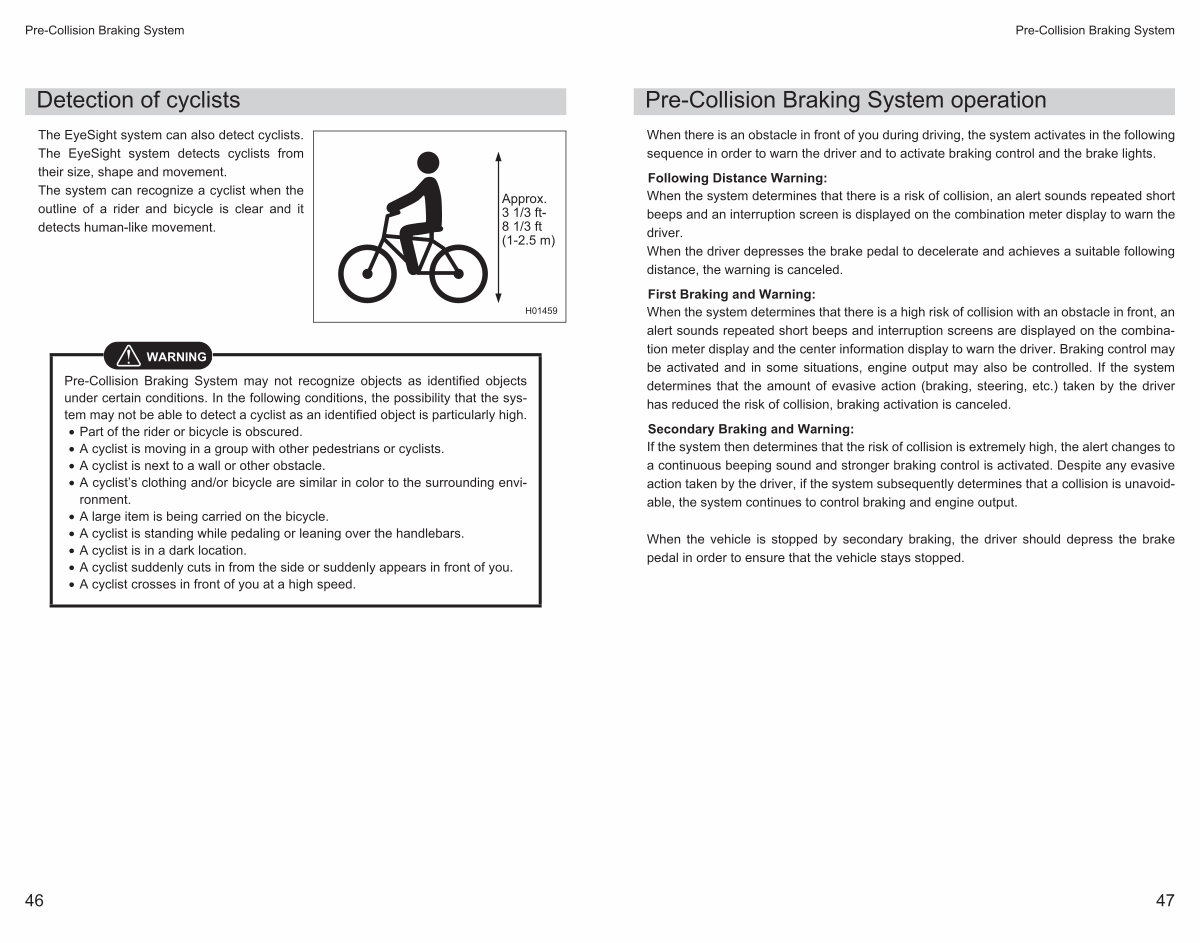

Pre-Collision Braking System
Detection of cyclists
The EyeSight system can also detect cyclists. The EyeSight system detects cyclists from their size, shape and movement. The system can recognize a cyclist when the outline of a rider and bicycle is clear and it detects human-like movement.
Approx. 3 1 / 3 ft- 8 1 / 3 ft( 1-2.5 m)
H01459
WARNING
Pre-Collision Braking System may not recognize objects as identified objects under certain conditions. In the following conditions, the possibility that the system may not be able to detect a cyclist as an identified object is particularly high.
• Part of the rider or bicycle is obscured.
• A cyclist is moving in a group with other pedestrians or cyclists.
• A cyclist is next to a wall or other obstacle.
• A cyclist’ s clothing and / or bicycle are similar in color to the surrounding environment.
• A large item is being carried on the bicycle.
• A cyclist is standing while pedaling or leaning over the handlebars.
• A cyclist is in a dark location.
• A cyclist suddenly cuts in from the side or suddenly appears in front of you.
• A cyclist crosses in front of you at a high speed.
46
