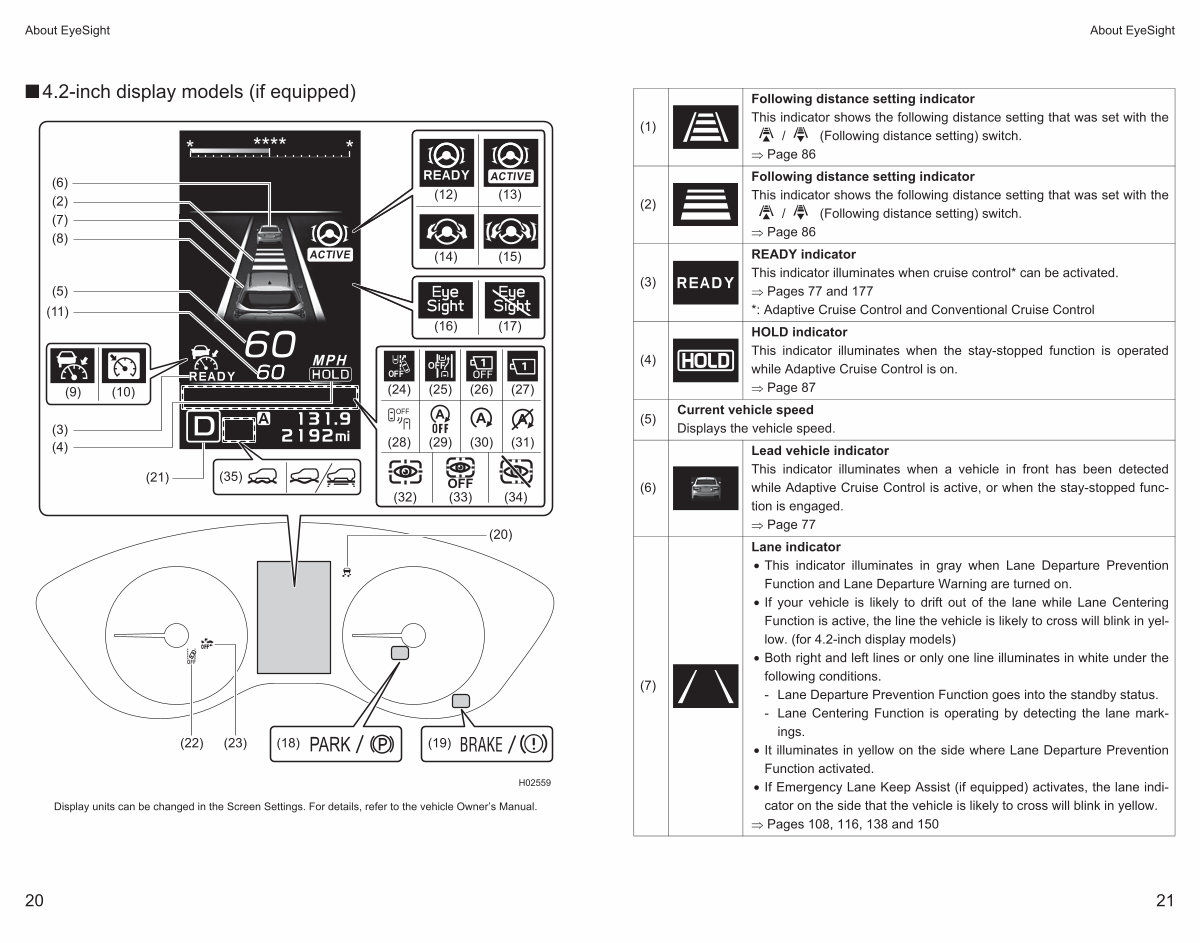

About EyeSight
( 1)
( 2)
( 3)
( 4)
( 5)
( 6)
( 7)
Following distance setting indicator This indicator shows the following distance setting that was set with the
/( Following distance setting) switch.
� Page 86 Following distance setting indicator This indicator shows the following distance setting that was set with the
/( Following distance setting) switch.
� Page 86 READY indicator This indicator illuminates when cruise control * can be activated.
� Pages 77 and 177 *: Adaptive Cruise Control and Conventional Cruise Control HOLD indicator This indicator illuminates when the stay-stopped function is operated while Adaptive Cruise Control is on.
� Page 87 Current vehicle speed Displays the vehicle speed.
Lead vehicle indicator This indicator illuminates when a vehicle in front has been detected while Adaptive Cruise Control is active, or when the stay-stopped function is engaged.
� Page 77
Lane indicator
• This indicator illuminates in gray when Lane Departure Prevention Function and Lane Departure Warning are turned on.
• If your vehicle is likely to drift out of the lane while Lane Centering Function is active, the line the vehicle is likely to cross will blink in yellow.( for 4.2-inch display models)
• Both right and left lines or only one line illuminates in white under the following conditions.- Lane Departure Prevention Function goes into the standby status.- Lane Centering Function is operating by detecting the lane markings.
• It illuminates in yellow on the side where Lane Departure Prevention Function activated.
• If Emergency Lane Keep Assist( if equipped) activates, the lane indicator on the side that the vehicle is likely to cross will blink in yellow.
� Pages 108, 116, 138 and 150
21
