EyeSight Assist Monitor( if equipped)

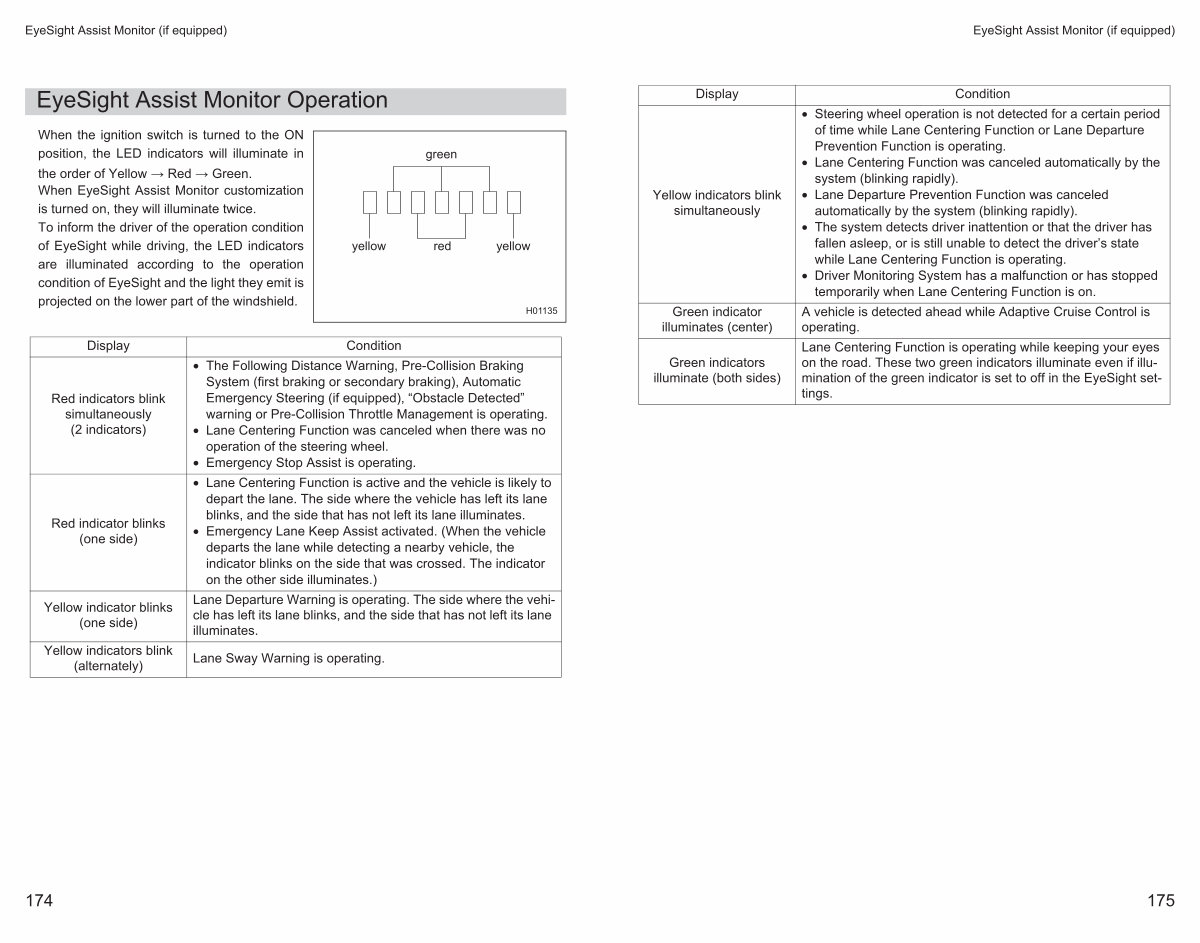

EyeSight Assist Monitor Operation
When the ignition switch is turned to the ON position, the LED indicators will illuminate in the order of Yellow � Red � Green. When EyeSight Assist Monitor customization is turned on, they will illuminate twice. To inform the driver of the operation condition of EyeSight while driving, the LED indicators are illuminated according to the operation condition of EyeSight and the light they emit is projected on the lower part of the windshield. green
yellow red yellow
H01135
Display
Red indicators blink simultaneously( 2 indicators)
Red indicator blinks( one side)
Yellow indicator blinks( one side)
Yellow indicators blink( alternately)
Condition
• The Following Distance Warning, Pre-Collision Braking System( first braking or secondary braking), Automatic Emergency Steering( if equipped),“ Obstacle Detected” warning or Pre-Collision Throttle Management is operating.
• Lane Centering Function was canceled when there was no operation of the steering wheel.
• Emergency Stop Assist is operating.
• Lane Centering Function is active and the vehicle is likely to depart the lane. The side where the vehicle has left its lane blinks, and the side that has not left its lane illuminates.
• Emergency Lane Keep Assist activated.( When the vehicle departs the lane while detecting a nearby vehicle, the indicator blinks on the side that was crossed. The indicator on the other side illuminates.)
Lane Departure Warning is operating. The side where the vehicle has left its lane blinks, and the side that has not left its lane illuminates.
Lane Sway Warning is operating.
