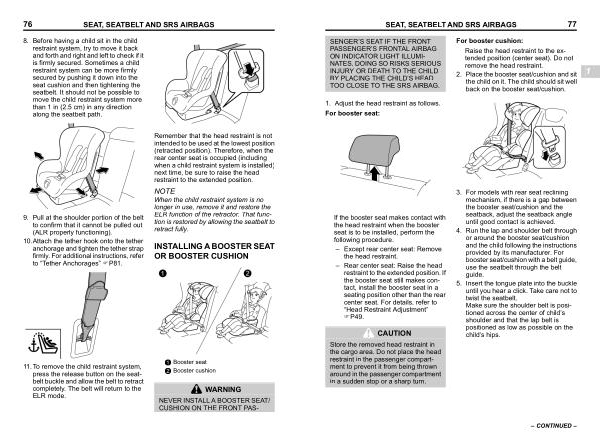

76
SEAT, SEATBELT AND SRS AIRBAGS
8. Before having a child sit in the child restraint system, try to move it back and forth and right and left to check if it is firmly secured. Sometimes a child restraint system can be more firmly secured by pushing it down into the seat cushion and then tightening the seatbelt. It should not be possible to move the child restraint system more than 1 in( 2.5 cm) in any direction along the seatbelt path.
S _ 103101-MW
9. Pull at the shoulder portion of the belt to confirm that it cannot be pulled out( ALR properly functioning).
10. Attach the tether hook onto the tether anchorage and tighten the tether strap firmly. For additional instructions, refer to“ Tether Anchorages” FP81.
S _ 103103-MW
Remember that the head restraint is not intended to be used at the lowest position( retracted position). Therefore, when the rear center seat is occupied( including when a child restraint system is installed) next time, be sure to raise the head restraint to the extended position.
NOTE
When the child restraint system is no longer in use, remove it and restore the ELR function of the retractor. That function is restored by allowing the seatbelt to retract fully.
INSTALLING A BOOSTER SEAT OR BOOSTER CUSHION s01ag05
S _ 103102-W
11. To remove the child restraint system, press the release button on the seatbelt buckle and allow the belt to retract completely. The belt will return to the ELR mode.
Booster seat Booster cushion
S _ 103226-W
WARNING
NEVER INSTALL A BOOSTER SEAT / CUSHION ON THE FRONT PAS-
