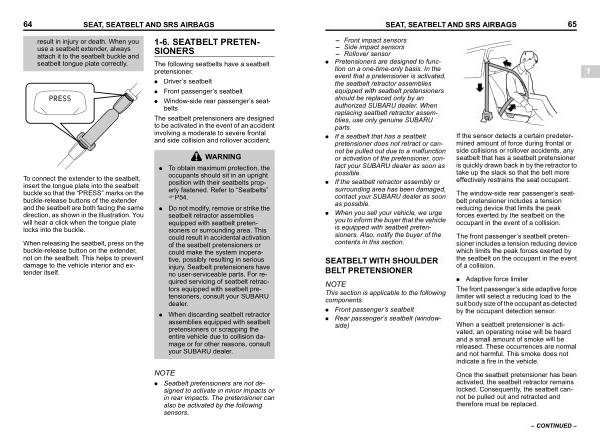

64
SEAT , SEATBELT AND SRS AIRBAGS
result in injury or death . When you use a seatbelt extender , always attach it to the seatbelt buckle and seatbelt tongue plate correctly .
1-6 . SEATBELT PRETEN- SIONERS s01af
The following seatbelts have a seatbelt pretensioner .
. Driver ’ s seatbelt . Front passenger ’ s seatbelt
. Window-side rear passenger ’ s seatbelts
The seatbelt pretensioners are designed to be activated in the event of an accident involving a moderate to severe frontal and side collision and rollover accident .
S _ 103083-W
To connect the extender to the seatbelt , insert the tongue plate into the seatbelt buckle so that the “ PRESS ” marks on the buckle-release buttons of the extender and the seatbelt are both facing the same direction , as shown in the illustration . You will hear a click when the tongue plate locks into the buckle .
When releasing the seatbelt , press on the buckle-release button on the extender , not on the seatbelt . This helps to prevent damage to the vehicle interior and extender itself .
WARNING
. To obtain maximum protection , the occupants should sit in an upright position with their seatbelts properly fastened . Refer to “ Seatbelts ” FP54 .
. Do not modify , remove or strike the seatbelt retractor assemblies equipped with seatbelt pretensioners or surrounding area . This could result in accidental activation of the seatbelt pretensioners or could make the system inoperative , possibly resulting in serious injury . Seatbelt pretensioners have no user-serviceable parts . For required servicing of seatbelt retractors equipped with seatbelt pretensioners , consult your SUBARU dealer .
. When discarding seatbelt retractor assemblies equipped with seatbelt pretensioners or scrapping the entire vehicle due to collision damage or for other reasons , consult your SUBARU dealer .
NOTE
. Seatbelt pretensioners are not designed to activate in minor impacts or in rear impacts . The pretensioner can also be activated by the following sensors .
