546

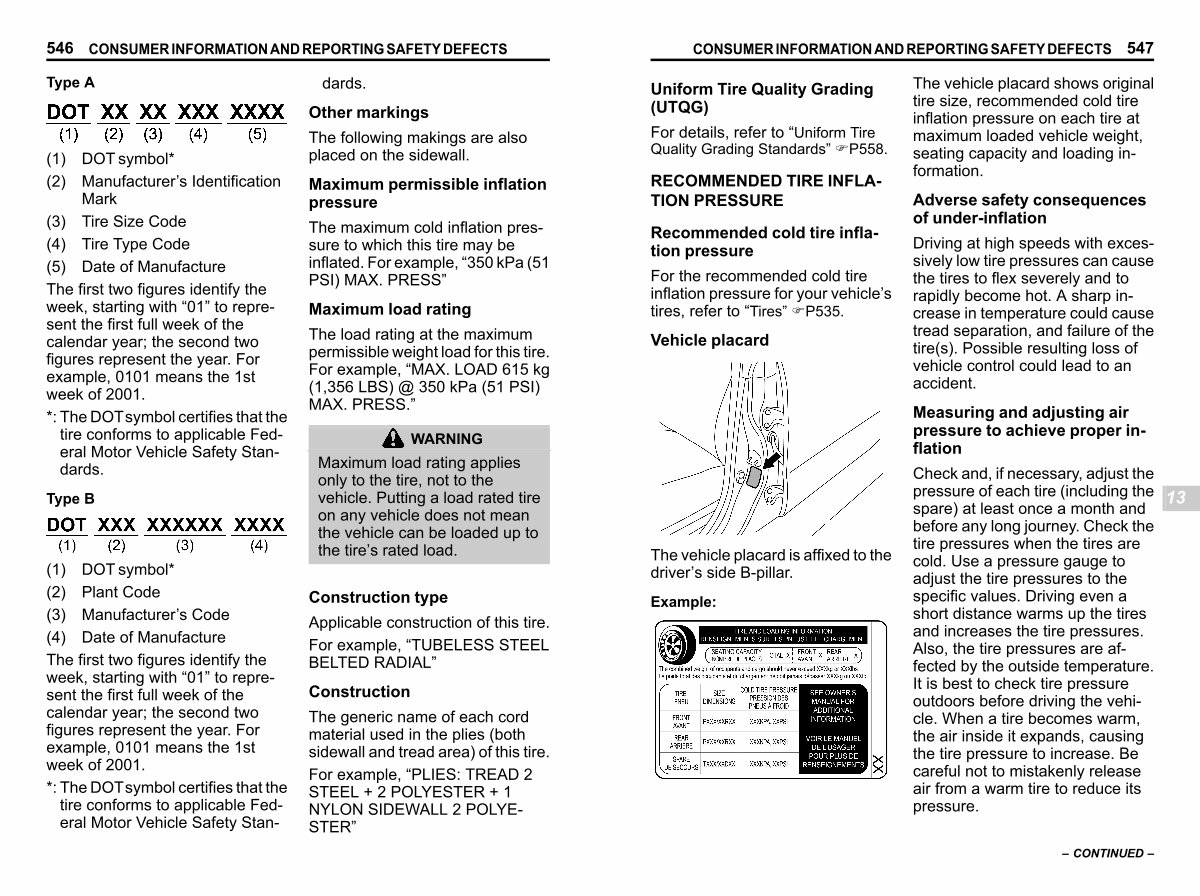

CONSUMER INFORMATION AND REPORTING SAFETY DEFECTS Type A
ZOM0793
( 1) DOT symbol *
( 2) Manufacturer’ s Identification Mark
( 3) Tire Size Code( 4) Tire Type Code( 5) Date of Manufacture
The first two figures identify the week, starting with“ 01” to represent the first full week of the calendar year; the second two figures represent the year. For example, 0101 means the 1st week of 2001.
*: The DOTsymbol certifies that the tire conforms to applicable Federal Motor Vehicle Safety Standards.
Type B
ZOM0925
( 1) DOT symbol *( 2) Plant Code( 3) Manufacturer’ s Code( 4) Date of Manufacture
The first two figures identify the week, starting with“ 01” to represent the first full week of the calendar year; the second two figures represent the year. For example, 0101 means the 1st week of 2001.
*: The DOTsymbol certifies that the tire conforms to applicable Federal Motor Vehicle Safety Standards. Other markings s13ab0103
The following makings are also placed on the sidewall.
Maximum permissible inflation pressure s13ab0106
The maximum cold inflation pressure to which this tire may be inflated. For example,“ 350 kPa( 51 PSI) MAX. PRESS”
Maximum load rating s13ab0107
The load rating at the maximum permissible weight load for this tire. For example,“ MAX. LOAD 615 kg( 1,356 LBS) @ 350 kPa( 51 PSI) MAX. PRESS.”
WARNING
Maximum load rating applies only to the tire, not to the vehicle. Putting a load rated tire on any vehicle does not mean the vehicle can be loaded up to the tire’ s rated load.
Construction type s13ab0108
Applicable construction of this tire.
For example,“ TUBELESS STEEL BELTED RADIAL”
Construction s13ab0109
The generic name of each cord material used in the plies( both sidewall and tread area) of this tire.
For example,“ PLIES: TREAD 2 STEEL + 2 POLYESTER + 1 NYLON SIDEWALL 2 POLYE- STER”
