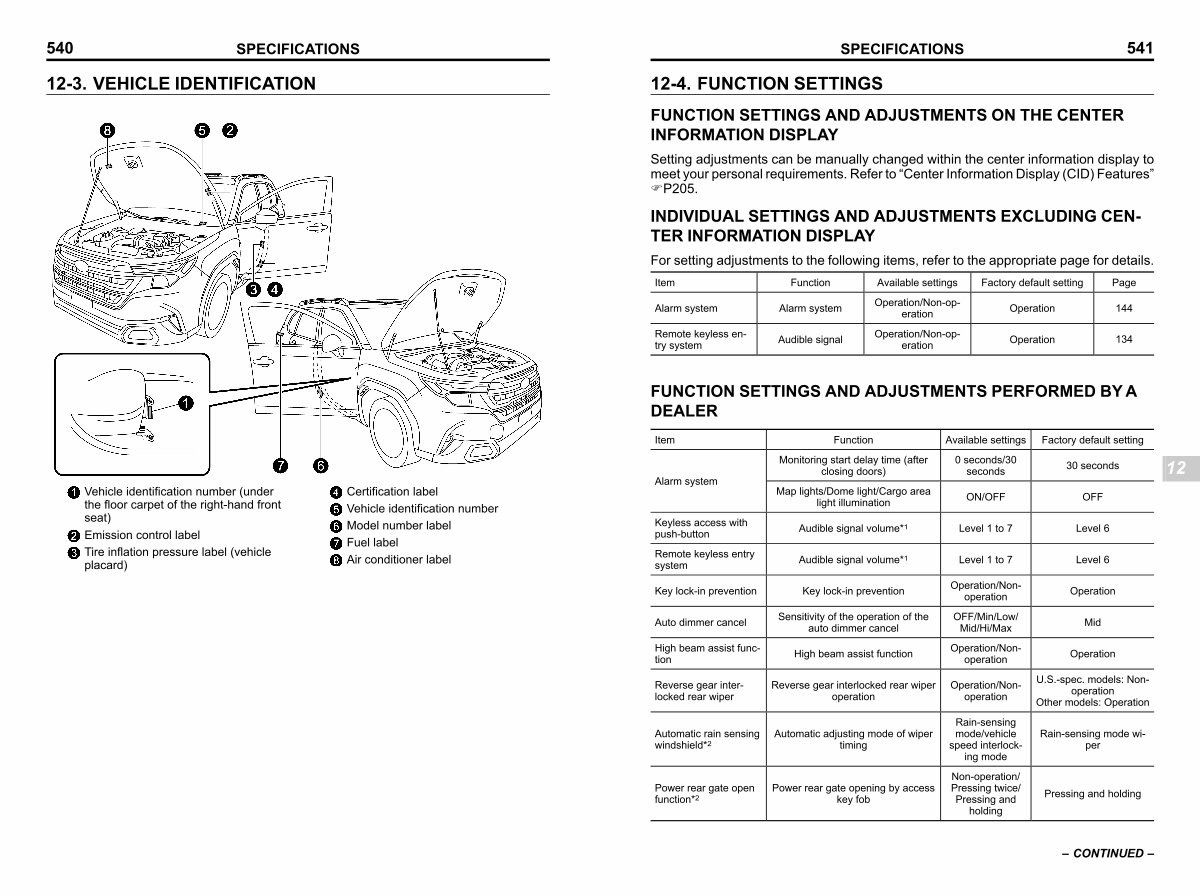

12-4. FUNCTION SETTINGS s12ag FUNCTION SETTINGS AND ADJUSTMENTS ON THE CENTER
INFORMATION DISPLAY s12ag01
Setting adjustments can be manually changed within the center information display to meet your personal requirements. Refer to“ Center Information Display( CID) Features” FP205.
INDIVIDUAL SETTINGS AND ADJUSTMENTS EXCLUDING CEN- TER INFORMATION DISPLAY s12ag02
For setting adjustments to the following items, refer to the appropriate page for details.
Item Function Available settings Factory default setting Page Alarm system
Remote keyless entry system
Alarm system
Audible signal
SPECIFICATIONS 541
Operation / Non-operation
Operation / Non-operation
Operation 144
Operation 134
FUNCTION SETTINGS AND ADJUSTMENTS PERFORMED BY A DEALER s12ag03
Item Function Available settings Factory default setting
Alarm system
Keyless access with push-button
Remote keyless entry system
Key lock-in prevention
Auto dimmer cancel
High beam assist function
Reverse gear interlocked rear wiper
Automatic rain sensing windshield * 2
Power rear gate open function * 2
Monitoring start delay time( after closing doors)
Map lights / Dome light / Cargo area light illumination
0 seconds / 30 seconds
ON / OFF
30 seconds
OFF
Audible signal volume * 1 Level 1 to 7 Level 6
Audible signal volume * 1 Level 1 to 7 Level 6
Key lock-in prevention
Sensitivity of the operation of the auto dimmer cancel
High beam assist function
Reverse gear interlocked rear wiper operation
Automatic adjusting mode of wiper timing
Power rear gate opening by access key fob
Operation / Nonoperation
OFF / Min / Low / Mid / Hi / Max
Operation / Nonoperation
Operation / Nonoperation
Rain-sensing mode / vehicle speed interlocking mode
Non-operation / Pressing twice / Pressing and holding
Operation
Mid
Operation
U. S.-spec. models: Nonoperation Other models: Operation
Rain-sensing mode wiper
Pressing and holding
12
– CONTINUED –
