IN CASE OF EMERGENCY 469

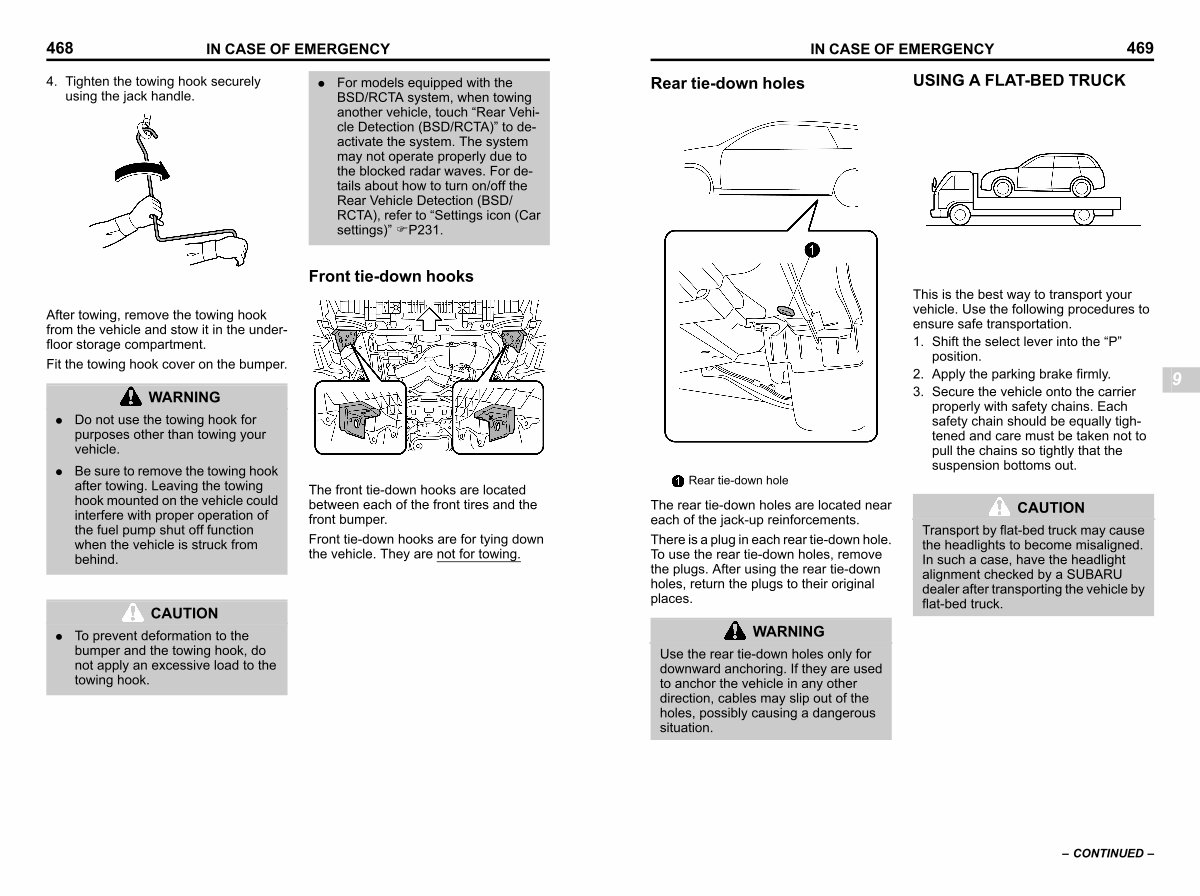

Rear tie-down holes |
s09af0107 |
USING A FLAT-BED TRUCK s09af02 |
|
|
|
S _ 901446-MW |
|
Rear tie-down hole |
S _ 901526-W |
This is the best way to transport your vehicle. Use the following procedures to ensure safe transportation.
1. Shift the select lever into the“ P” position.
2. Apply the parking brake firmly.
3. Secure the vehicle onto the carrier properly with safety chains. Each safety chain should be equally tightened and care must be taken not to pull the chains so tightly that the suspension bottoms out.
|
|
9 |
The rear tie-down holes are located near each of the jack-up reinforcements.
There is a plug in each rear tie-down hole. To use the rear tie-down holes, remove the plugs. After using the rear tie-down holes, return the plugs to their original places.
CAUTION
Transport by flat-bed truck may cause the headlights to become misaligned. In such a case, have the headlight alignment checked by a SUBARU dealer after transporting the vehicle by flat-bed truck.
WARNING
Use the rear tie-down holes only for downward anchoring. If they are used to anchor the vehicle in any other direction, cables may slip out of the holes, possibly causing a dangerous situation.
– CONTINUED –
