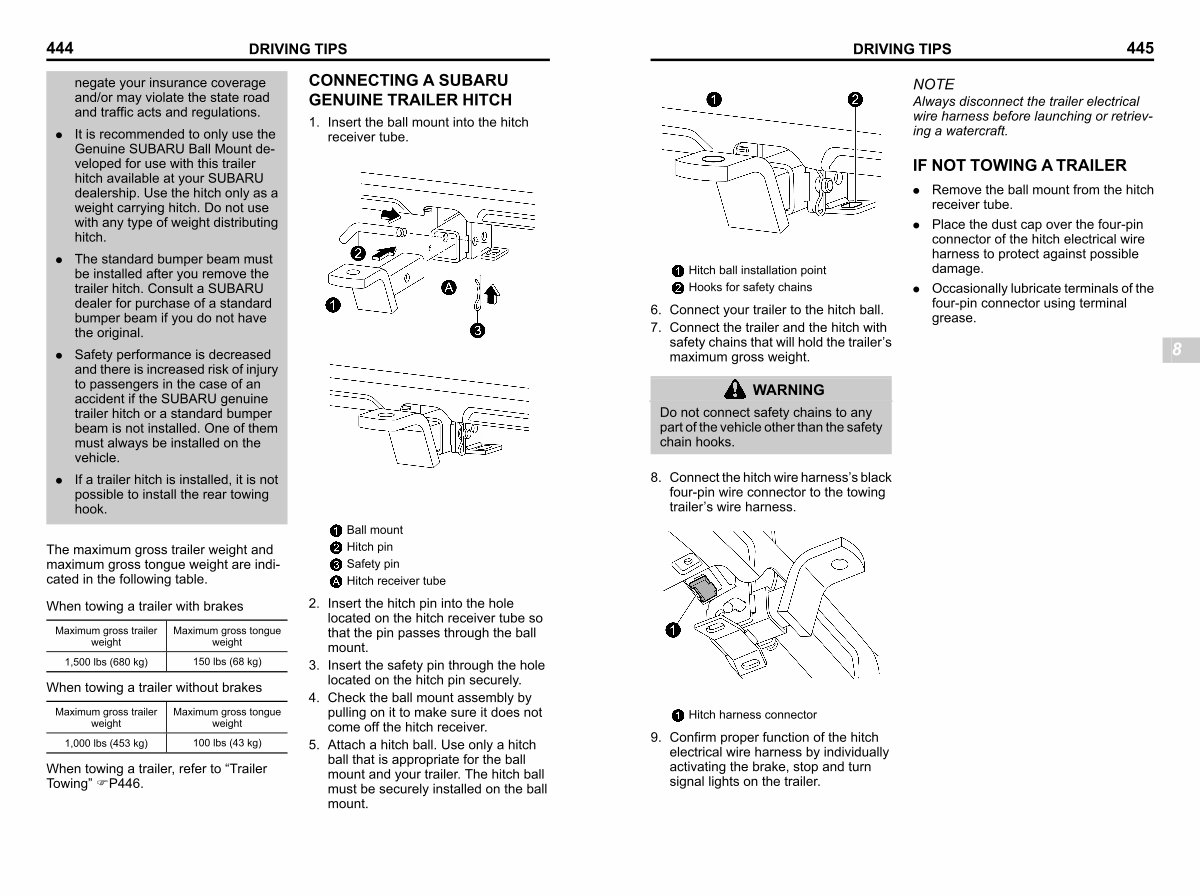

DRIVING TIPS 445
NOTE
Always disconnect the trailer electrical wire harness before launching or retrieving a watercraft.
Hitch ball installation point Hooks for safety chains
S _ 801533-W
6. Connect your trailer to the hitch ball.
7. Connect the trailer and the hitch with safety chains that will hold the trailer’ s maximum gross weight.
IF NOT TOWING A TRAILER s08ak02
. Remove the ball mount from the hitch receiver tube.
. Place the dust cap over the four-pin connector of the hitch electrical wire harness to protect against possible damage.
. Occasionally lubricate terminals of the four-pin connector using terminal grease.
8
WARNING
Do not connect safety chains to any part of the vehicle other than the safety chain hooks.
8. Connect the hitch wire harness’ s black four-pin wire connector to the towing trailer’ s wire harness.
Hitch harness connector
S _ 801537-W
9. Confirm proper function of the hitch electrical wire harness by individually activating the brake, stop and turn signal lights on the trailer.
