406
STARTING AND OPERATING

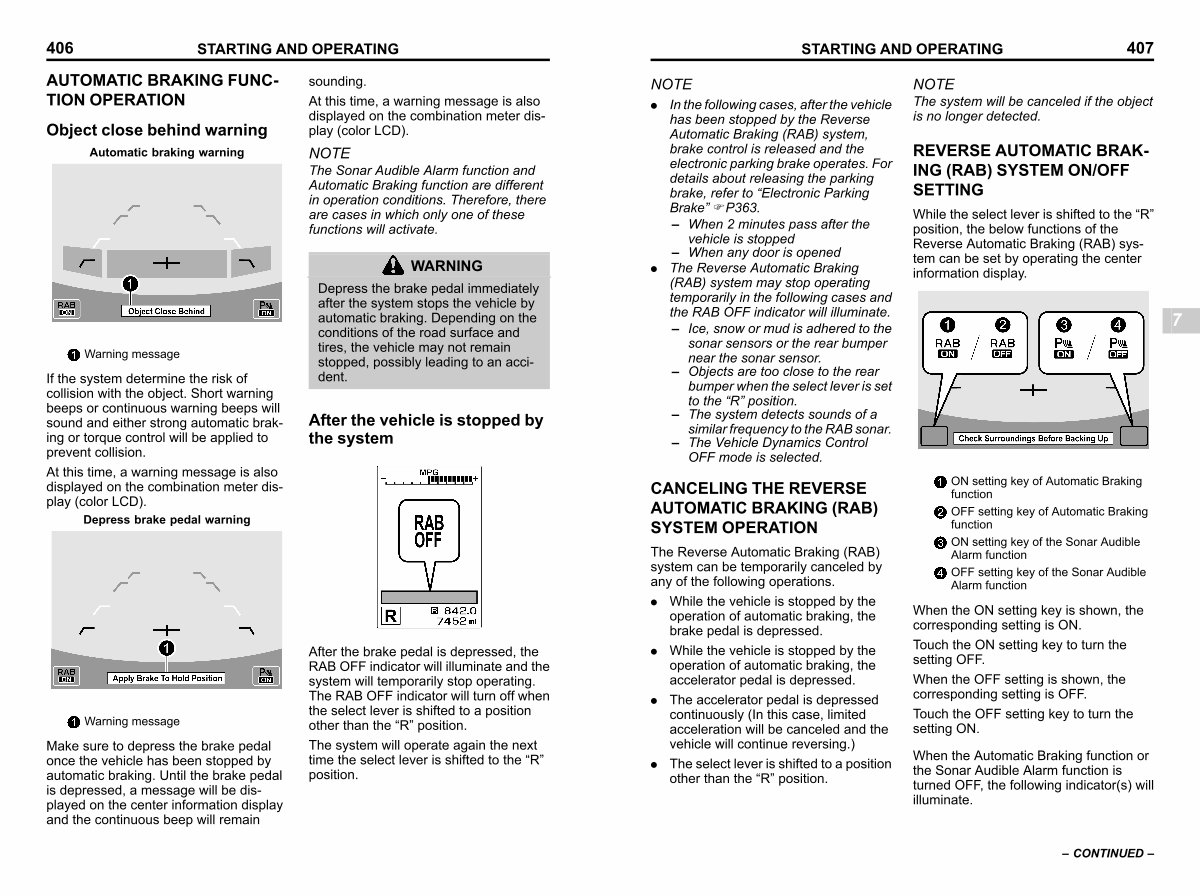

AUTOMATIC BRAKING FUNC- TION OPERATION s07bn08
Object close behind warning s07bn0801
Automatic braking warning
sounding.
At this time, a warning message is also displayed on the combination meter display( color LCD).
NOTE
The Sonar Audible Alarm function and Automatic Braking function are different in operation conditions. Therefore, there are cases in which only one of these functions will activate.
Warning message
S _ 703301-W
If the system determine the risk of collision with the object. Short warning beeps or continuous warning beeps will sound and either strong automatic braking or torque control will be applied to prevent collision.
At this time, a warning message is also displayed on the combination meter display( color LCD).
Depress brake pedal warning
WARNING
Depress the brake pedal immediately after the system stops the vehicle by automatic braking. Depending on the conditions of the road surface and tires, the vehicle may not remain stopped, possibly leading to an accident.
After the vehicle is stopped by the system s07bn0802
S _ 703196-MW
Warning message
S _ 703302-W
Make sure to depress the brake pedal once the vehicle has been stopped by automatic braking. Until the brake pedal is depressed, a message will be displayed on the center information display and the continuous beep will remain
After the brake pedal is depressed, the RAB OFF indicator will illuminate and the system will temporarily stop operating. The RAB OFF indicator will turn off when the select lever is shifted to a position other than the“ R” position.
The system will operate again the next time the select lever is shifted to the“ R” position.
