STARTING AND OPERATING 387

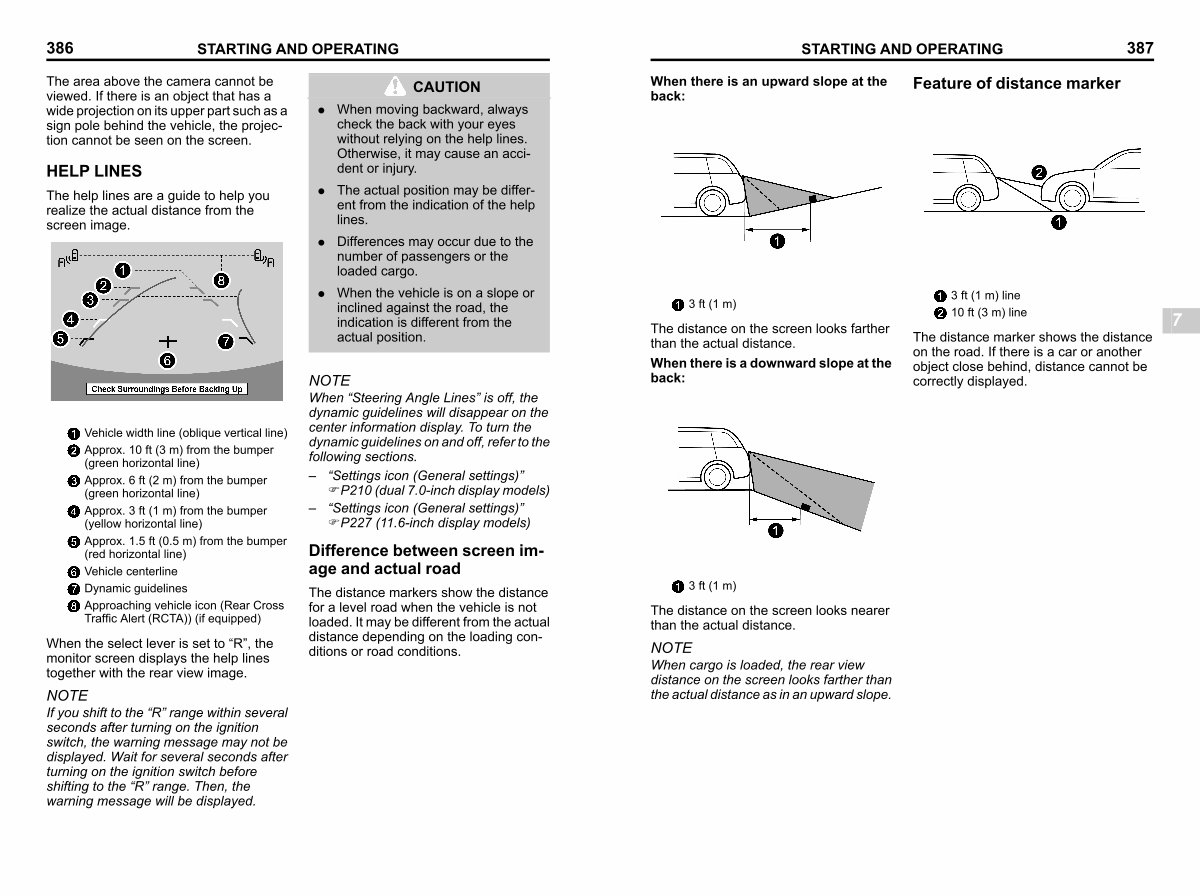

When there is an upward slope at the back:
Feature of distance marker s07br0302
3 ft( 1 m)
S _ 703281-MW
The distance on the screen looks farther than the actual distance.
When there is a downward slope at the back:
3 ft( 1 m) line 10 ft( 3 m) line
S _ 703283-W
The distance marker shows the distance on the road. If there is a car or another object close behind, distance cannot be correctly displayed.
7
3 ft( 1 m)
S _ 703282-MW
The distance on the screen looks nearer than the actual distance.
NOTE
When cargo is loaded, the rear view distance on the screen looks farther than the actual distance as in an upward slope.
