STARTING AND OPERATING 385
. It may be difficult to see the image of the rear view camera in the following cases. This is not a malfunction of the camera.
– The vehicle is in a dark place( at
night, in a tunnel, etc.). – The vehicle is in an extremely hot
or cold place. – An object( such as raindrops,
snow, dirt, etc.) that disturbs the view of the rear view camera sticks
to the lens of the camera. – Strong light is shining directly on
the camera lens( occasionally, there are vertical lines on the screen).

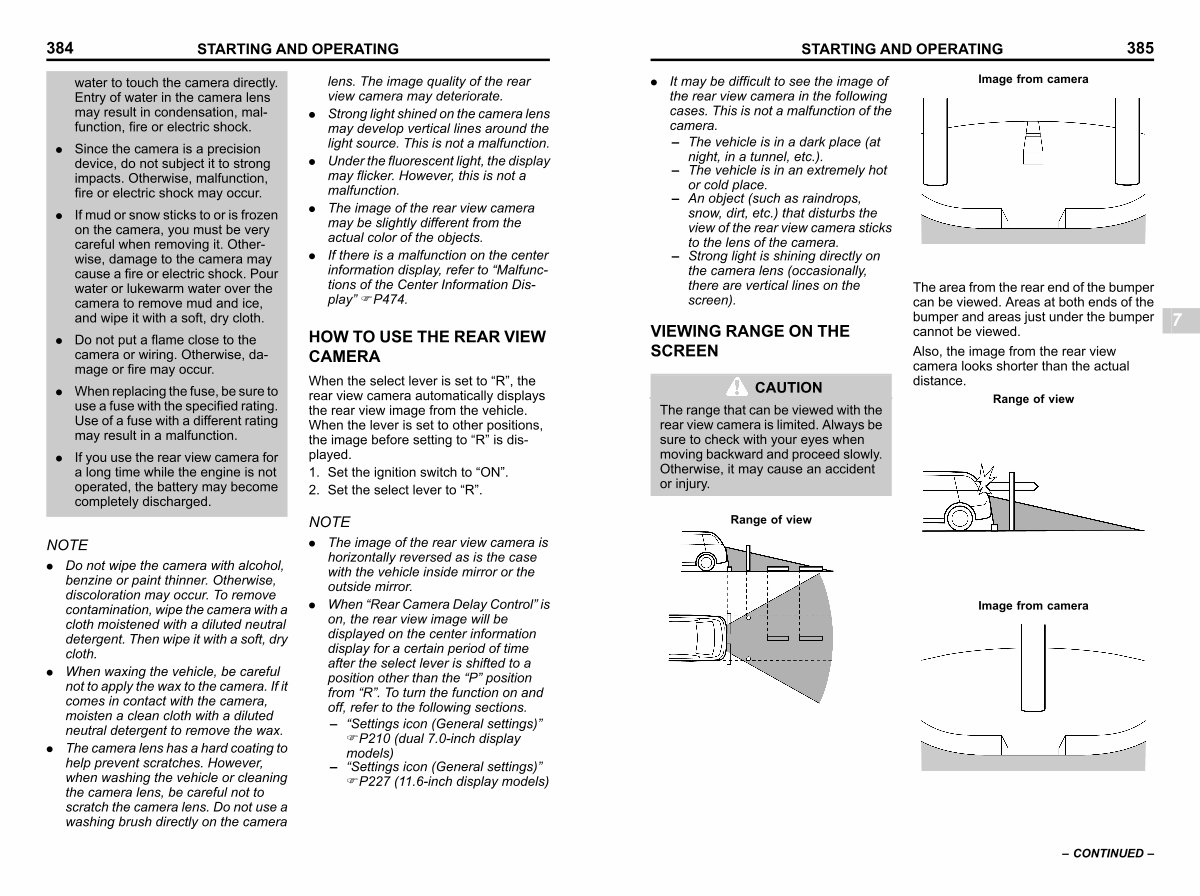

VIEWING RANGE ON THE SCREEN s07br02
CAUTION
The range that can be viewed with the rear view camera is limited. Always be sure to check with your eyes when moving backward and proceed slowly. Otherwise, it may cause an accident or injury.
Image from camera
S _ 703163-MW
The area from the rear end of the bumper can be viewed. Areas at both ends of the bumper and areas just under the bumper cannot be viewed.
Also, the image from the rear view camera looks shorter than the actual distance.
Range of view
7
Range of view
Image from camera
S _ 703164-MW
S _ 703214-W
S _ 703165-MW
– CONTINUED –
