336
STARTING AND OPERATING

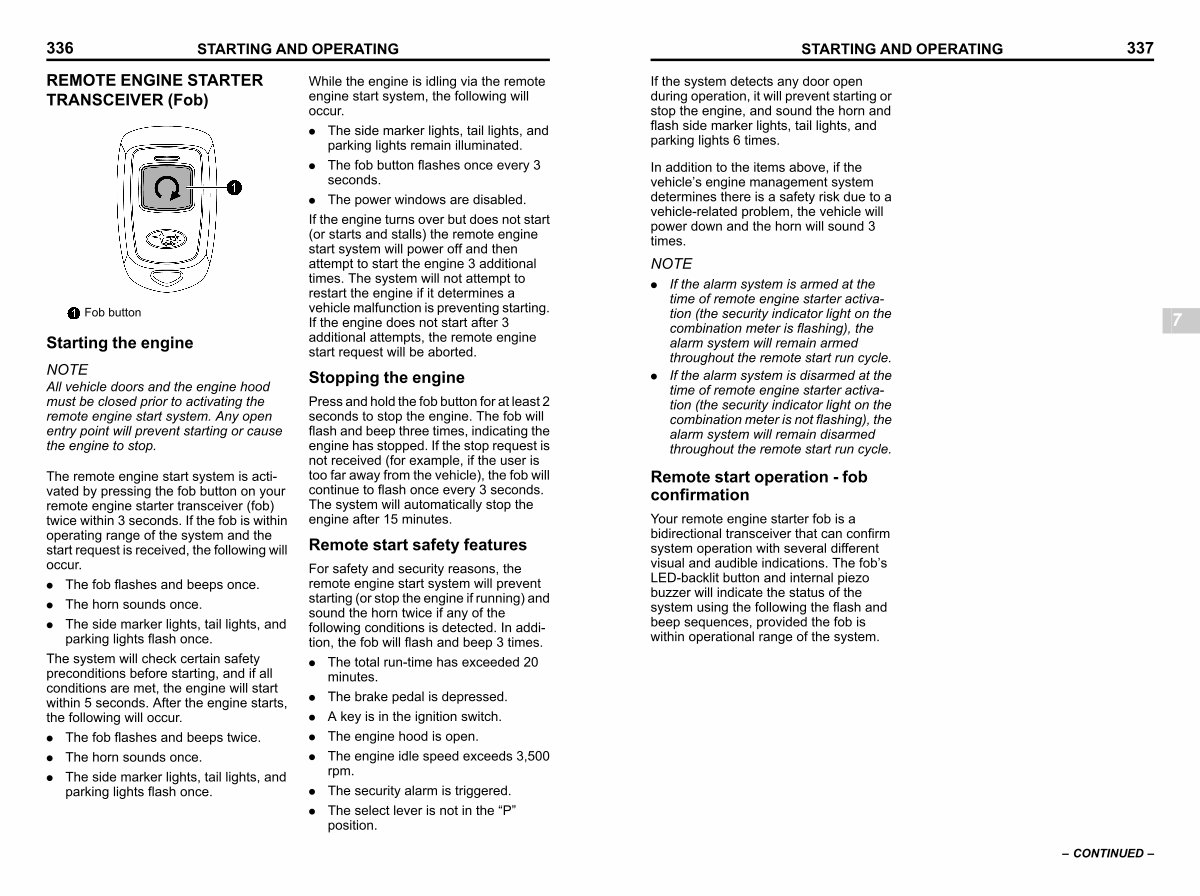

REMOTE ENGINE STARTER TRANSCEIVER( Fob) s07az21
Fob button Starting the engine
S _ 703262-MW
s07az2101
NOTE
All vehicle doors and the engine hood must be closed prior to activating the remote engine start system. Any open entry point will prevent starting or cause the engine to stop.
The remote engine start system is activated by pressing the fob button on your remote engine starter transceiver( fob) twice within 3 seconds. If the fob is within operating range of the system and the start request is received, the following will occur.
. The fob flashes and beeps once.. The horn sounds once.
. The side marker lights, tail lights, and parking lights flash once.
The system will check certain safety preconditions before starting, and if all conditions are met, the engine will start within 5 seconds. After the engine starts, the following will occur.
. The fob flashes and beeps twice.. The horn sounds once.
. The side marker lights, tail lights, and parking lights flash once.
While the engine is idling via the remote engine start system, the following will occur.
. The side marker lights, tail lights, and parking lights remain illuminated.
. The fob button flashes once every 3 seconds.
. The power windows are disabled.
If the engine turns over but does not start( or starts and stalls) the remote engine start system will power off and then attempt to start the engine 3 additional times. The system will not attempt to restart the engine if it determines a vehicle malfunction is preventing starting. If the engine does not start after 3 additional attempts, the remote engine start request will be aborted.
Stopping the engine s07az2102
Press and hold the fob button for at least 2 seconds to stop the engine. The fob will flash and beep three times, indicating the engine has stopped. If the stop request is not received( for example, if the user is too far away from the vehicle), the fob will continue to flash once every 3 seconds. The system will automatically stop the engine after 15 minutes.
Remote start safety features s07az2103
For safety and security reasons, the remote engine start system will prevent starting( or stop the engine if running) and sound the horn twice if any of the following conditions is detected. In addition, the fob will flash and beep 3 times.
. The total run-time has exceeded 20 minutes.
. The brake pedal is depressed.. A key is in the ignition switch.. The engine hood is open.
. The engine idle speed exceeds 3,500 rpm.
. The security alarm is triggered.
. The select lever is not in the“ P” position.
