318
INTERIOR EQUIPMENT
may result in their inability to hold the rear gate open.

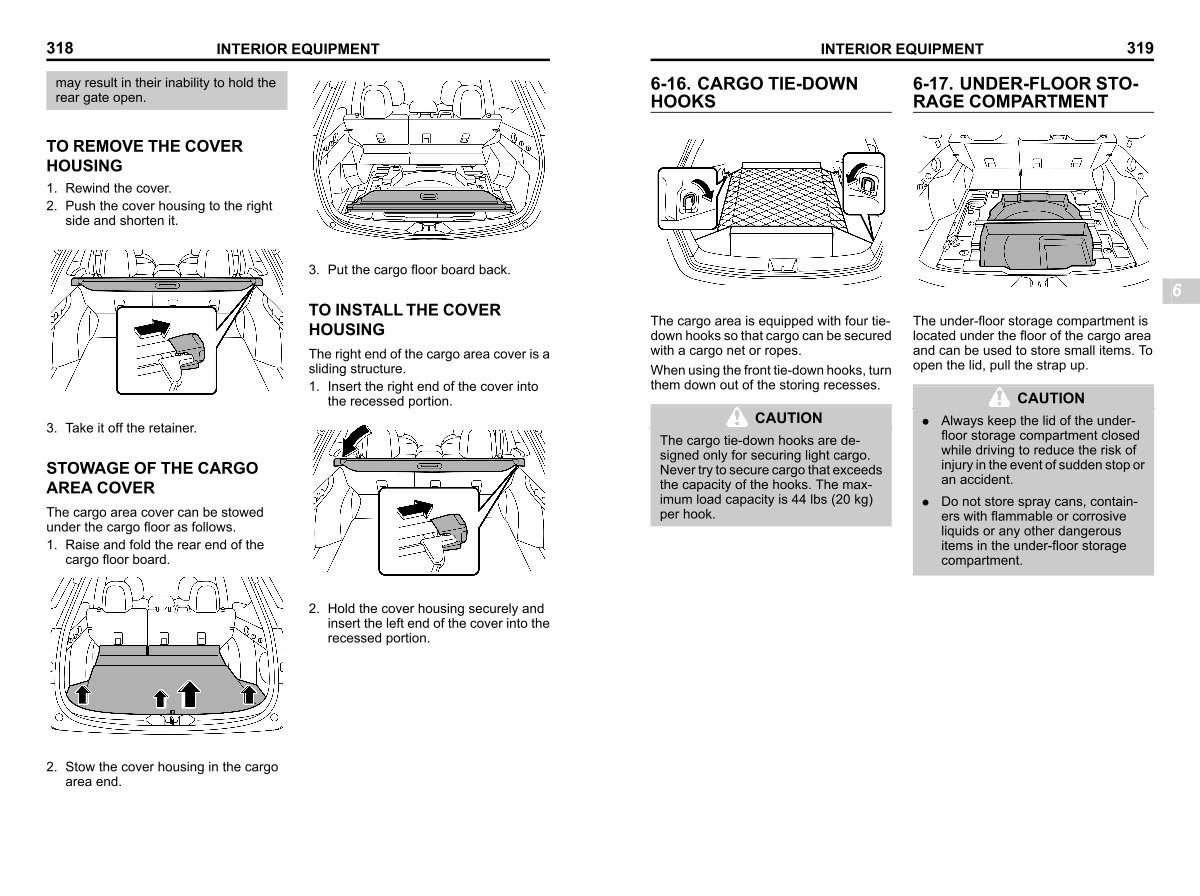

TO REMOVE THE COVER HOUSING
1. Rewind the cover.
2. Push the cover housing to the right side and shorten it. s06ak02
3. Put the cargo floor board back.
S _ 602672-W
3. Take it off the retainer.
S _ 602670-W
TO INSTALL THE COVER HOUSING s06ak05
The right end of the cargo area cover is a sliding structure.
1. Insert the right end of the cover into the recessed portion.
STOWAGE OF THE CARGO AREA COVER s06ak04
The cargo area cover can be stowed under the cargo floor as follows.
1. Raise and fold the rear end of the cargo floor board.
S _ 602674-W
2. Hold the cover housing securely and insert the left end of the cover into the recessed portion.
S _ 602671-W
2. Stow the cover housing in the cargo area end.
