CLIMATE CONTROL 291
S _ 403828-W

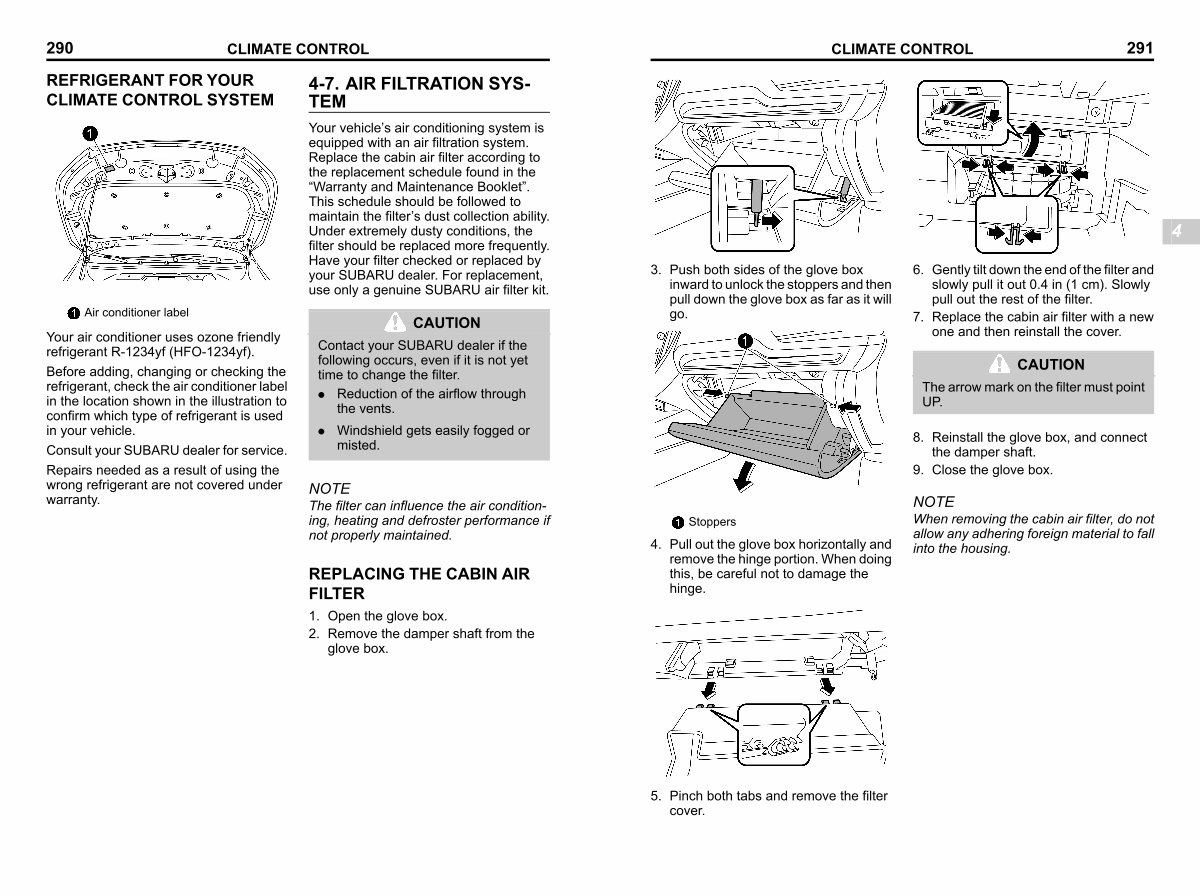

3. Push both sides of the glove box inward to unlock the stoppers and then pull down the glove box as far as it will go.
S _ 403831-W
6. Gently tilt down the end of the filter and slowly pull it out 0.4 in( 1 cm). Slowly pull out the rest of the filter.
7. Replace the cabin air filter with a new one and then reinstall the cover.
4
CAUTION
The arrow mark on the filter must point UP.
Stoppers
S _ 403898-W
4. Pull out the glove box horizontally and remove the hinge portion. When doing this, be careful not to damage the hinge.
8. Reinstall the glove box, and connect the damper shaft.
9. Close the glove box.
NOTE
When removing the cabin air filter, do not allow any adhering foreign material to fall into the housing.
S _ 403830-W
5. Pinch both tabs and remove the filter cover.
