282
CLIMATE CONTROL

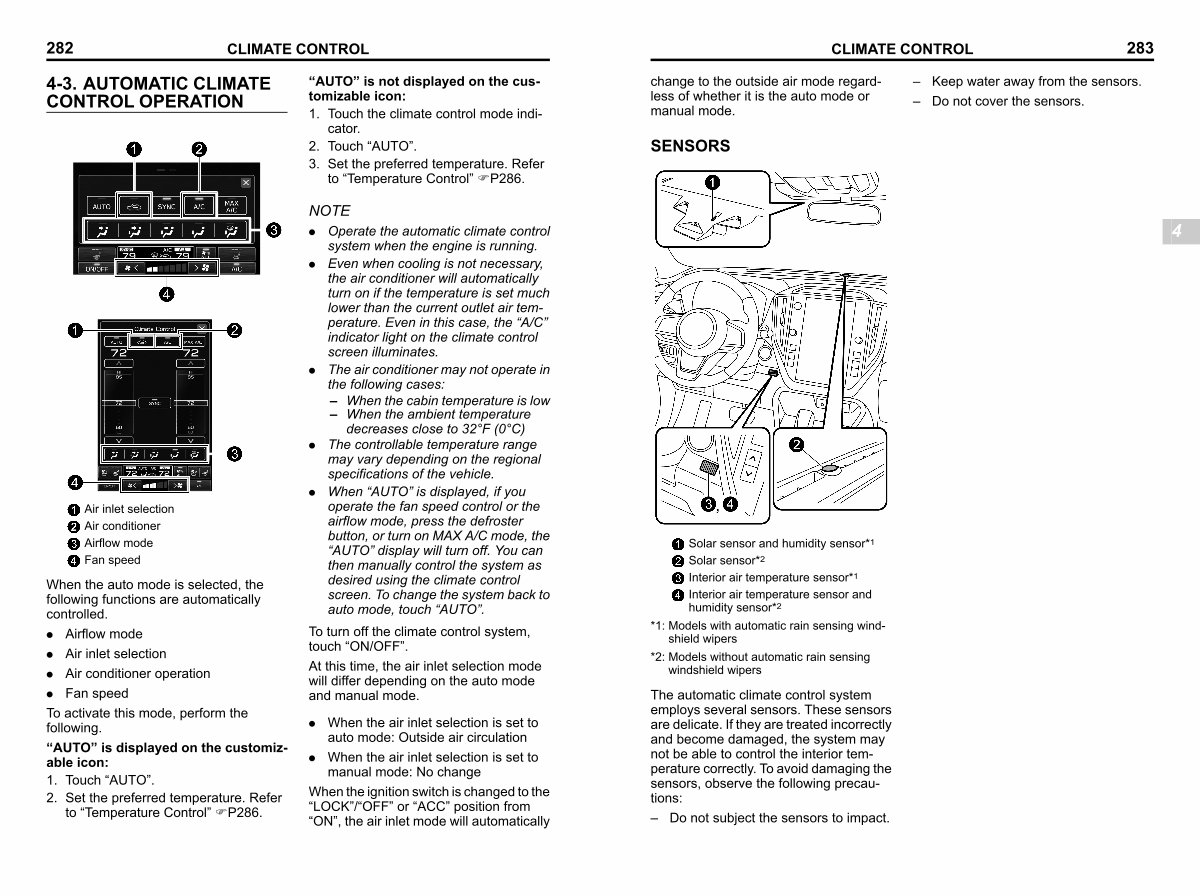

4-3. AUTOMATIC CLIMATE CONTROL OPERATION s04ai
“ AUTO” is not displayed on the customizable icon:
1. Touch the climate control mode indicator.
2. Touch“ AUTO”.
3. Set the preferred temperature. Refer to“ Temperature Control” FP286.
Air inlet selection Air conditioner Airflow mode Fan speed
S _ 403888-W
S _ 403889-W
When the auto mode is selected, the following functions are automatically controlled.
. Airflow mode. Air inlet selection. Air conditioner operation. Fan speed
To activate this mode, perform the following.
“ AUTO” is displayed on the customizable icon:
1. Touch“ AUTO”.
2. Set the preferred temperature. Refer to“ Temperature Control” FP286.
NOTE
. Operate the automatic climate control system when the engine is running.
. Even when cooling is not necessary, the air conditioner will automatically turn on if the temperature is set much lower than the current outlet air temperature. Even in this case, the“ A / C” indicator light on the climate control screen illuminates.
. The air conditioner may not operate in the following cases:
– When the cabin temperature is low – When the ambient temperature
decreases close to 32 ° F( 0 ° C)
. The controllable temperature range may vary depending on the regional specifications of the vehicle.
. When“ AUTO” is displayed, if you operate the fan speed control or the airflow mode, press the defroster button, or turn on MAX A / C mode, the“ AUTO” display will turn off. You can then manually control the system as desired using the climate control screen. To change the system back to auto mode, touch“ AUTO”.
To turn off the climate control system, touch“ ON / OFF”.
At this time, the air inlet selection mode will differ depending on the auto mode and manual mode.
. When the air inlet selection is set to auto mode: Outside air circulation
. When the air inlet selection is set to manual mode: No change
When the ignition switch is changed to the“ LOCK”/“ OFF” or“ ACC” position from“ ON”, the air inlet mode will automatically
