CLIMATE CONTROL 279

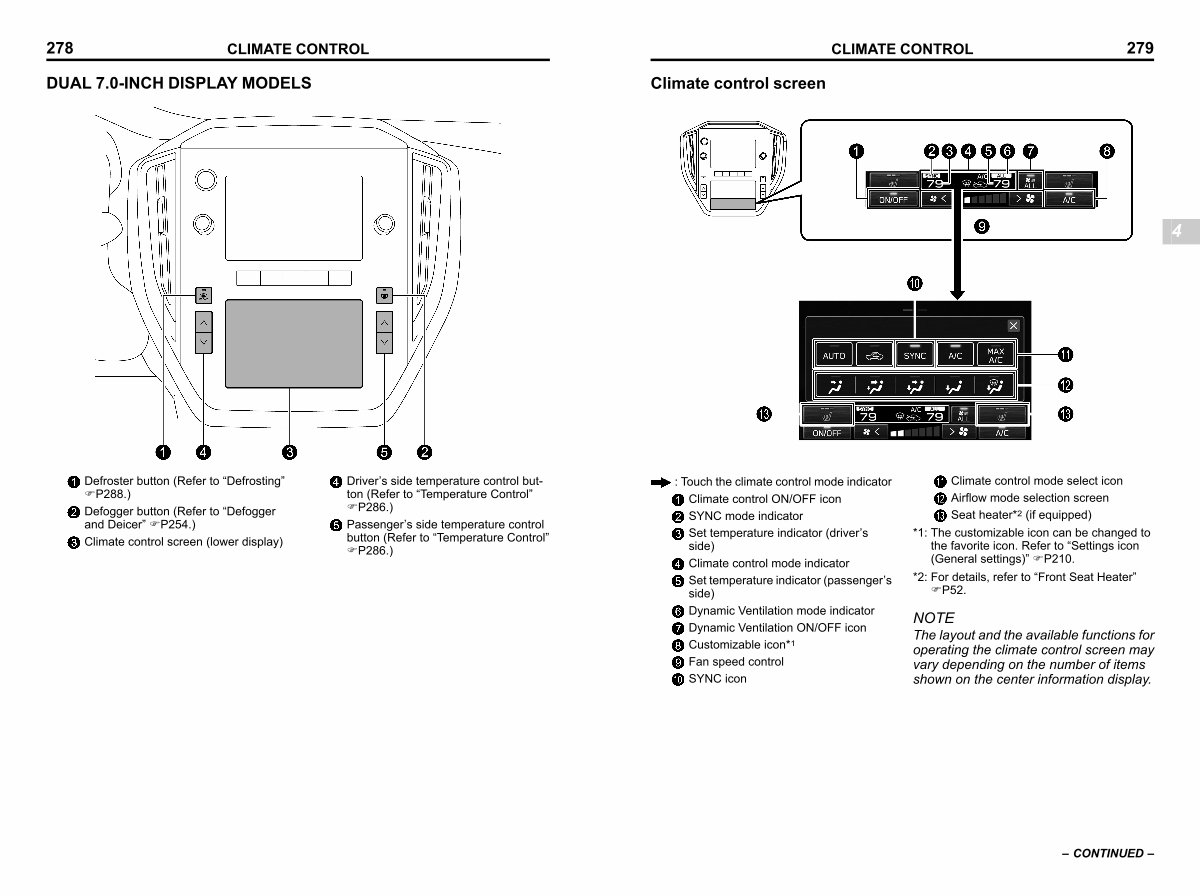

Climate control screen s04ag1101
4
S _ 403885-W
: Touch the climate control mode indicator Climate control ON / OFF icon SYNC mode indicator
Set temperature indicator( driver’ s side)
Climate control mode indicator
Set temperature indicator( passenger’ s side)
Dynamic Ventilation mode indicator Dynamic Ventilation ON / OFF icon Customizable icon * 1 Fan speed control SYNC icon
Climate control mode select icon Airflow mode selection screen Seat heater * 2( if equipped)
* 1: The customizable icon can be changed to the favorite icon. Refer to“ Settings icon( General settings)” FP210.
* 2: For details, refer to“ Front Seat Heater” FP52.
NOTE
The layout and the available functions for operating the climate control screen may vary depending on the number of items shown on the center information display.
– CONTINUED –
