276
CLIMATE CONTROL

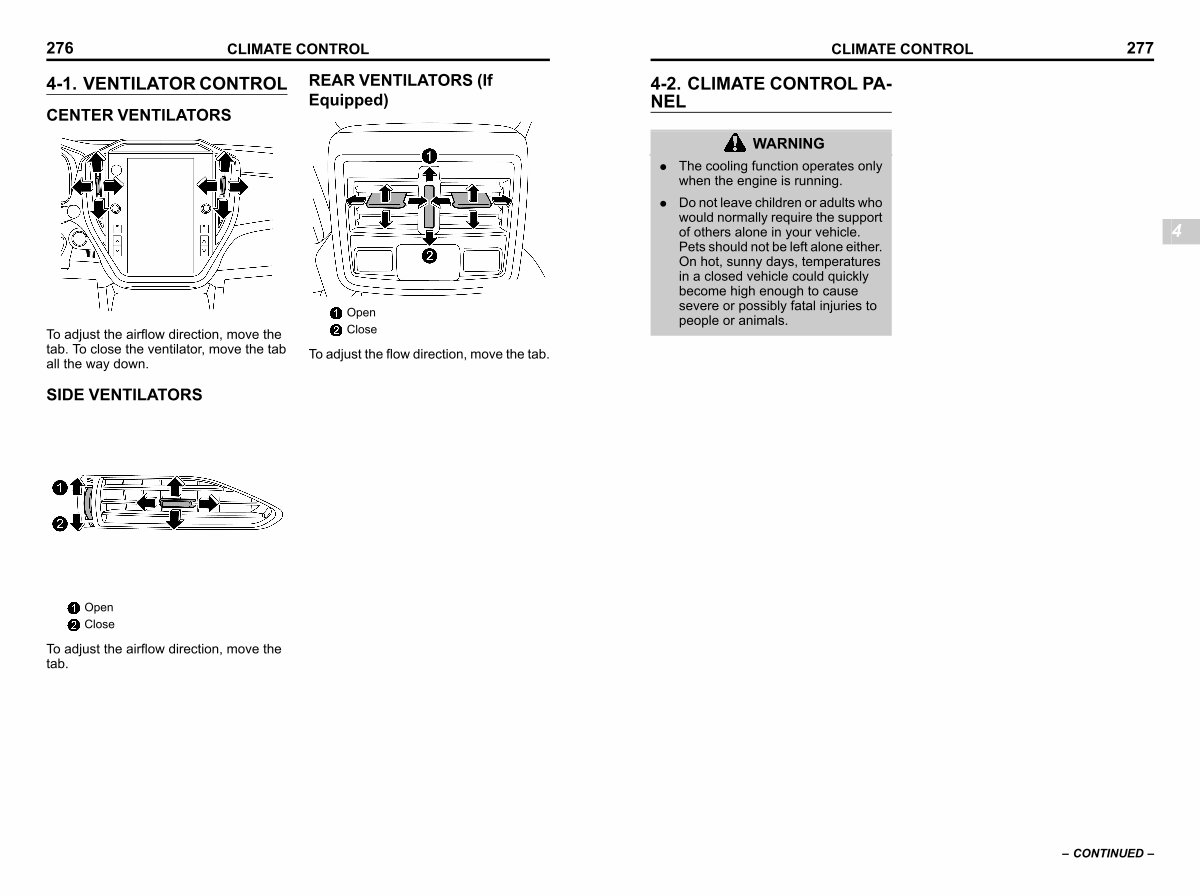

4-1. VENTILATOR CONTROL CENTER VENTILATORS s04af
s04af01
REAR VENTILATORS( If Equipped) s04af04
S _ 403808-W
To adjust the airflow direction, move the tab. To close the ventilator, move the tab all the way down.
Open Close
S _ 403883-W
To adjust the flow direction, move the tab.
SIDE VENTILATORS
s04af02
Open Close
S _ 403882-W
To adjust the airflow direction, move the tab.
