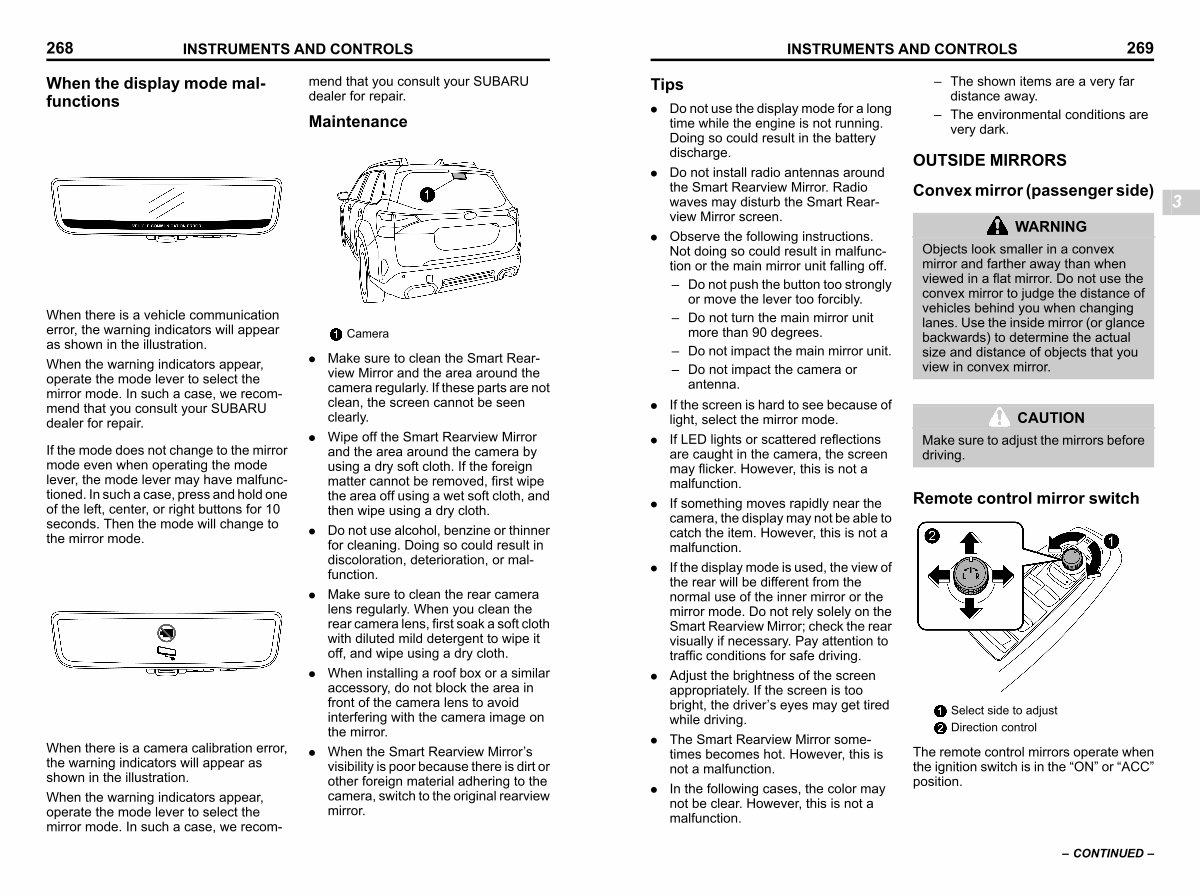

INSTRUMENTS AND CONTROLS 269
Tips s03ap1105
. Do not use the display mode for a long time while the engine is not running. Doing so could result in the battery discharge.
. Do not install radio antennas around the Smart Rearview Mirror. Radio waves may disturb the Smart Rearview Mirror screen.
. Observe the following instructions. Not doing so could result in malfunction or the main mirror unit falling off.
– Do not push the button too strongly or move the lever too forcibly.
– Do not turn the main mirror unit more than 90 degrees.
– Do not impact the main mirror unit.
– Do not impact the camera or antenna.
. If the screen is hard to see because of light, select the mirror mode.
. If LED lights or scattered reflections are caught in the camera, the screen may flicker. However, this is not a malfunction.
. If something moves rapidly near the camera, the display may not be able to catch the item. However, this is not a malfunction.
. If the display mode is used, the view of the rear will be different from the normal use of the inner mirror or the mirror mode. Do not rely solely on the Smart Rearview Mirror; check the rear visually if necessary. Pay attention to traffic conditions for safe driving.
. Adjust the brightness of the screen appropriately. If the screen is too bright, the driver’ s eyes may get tired while driving.
. The Smart Rearview Mirror sometimes becomes hot. However, this is not a malfunction.
. In the following cases, the color may not be clear. However, this is not a malfunction.
– The shown items are a very far distance away.
– The environmental conditions are very dark.
OUTSIDE MIRRORS s03ap03
Convex mirror( passenger side) s03ap0301
WARNING
Objects look smaller in a convex mirror and farther away than when viewed in a flat mirror. Do not use the convex mirror to judge the distance of vehicles behind you when changing lanes. Use the inside mirror( or glance backwards) to determine the actual size and distance of objects that you view in convex mirror.
CAUTION
Make sure to adjust the mirrors before driving.
Remote control mirror switch s03ap0302
Select side to adjust Direction control
S _ 307944-MW
The remote control mirrors operate when the ignition switch is in the“ ON” or“ ACC” position.
3
– CONTINUED –
