252

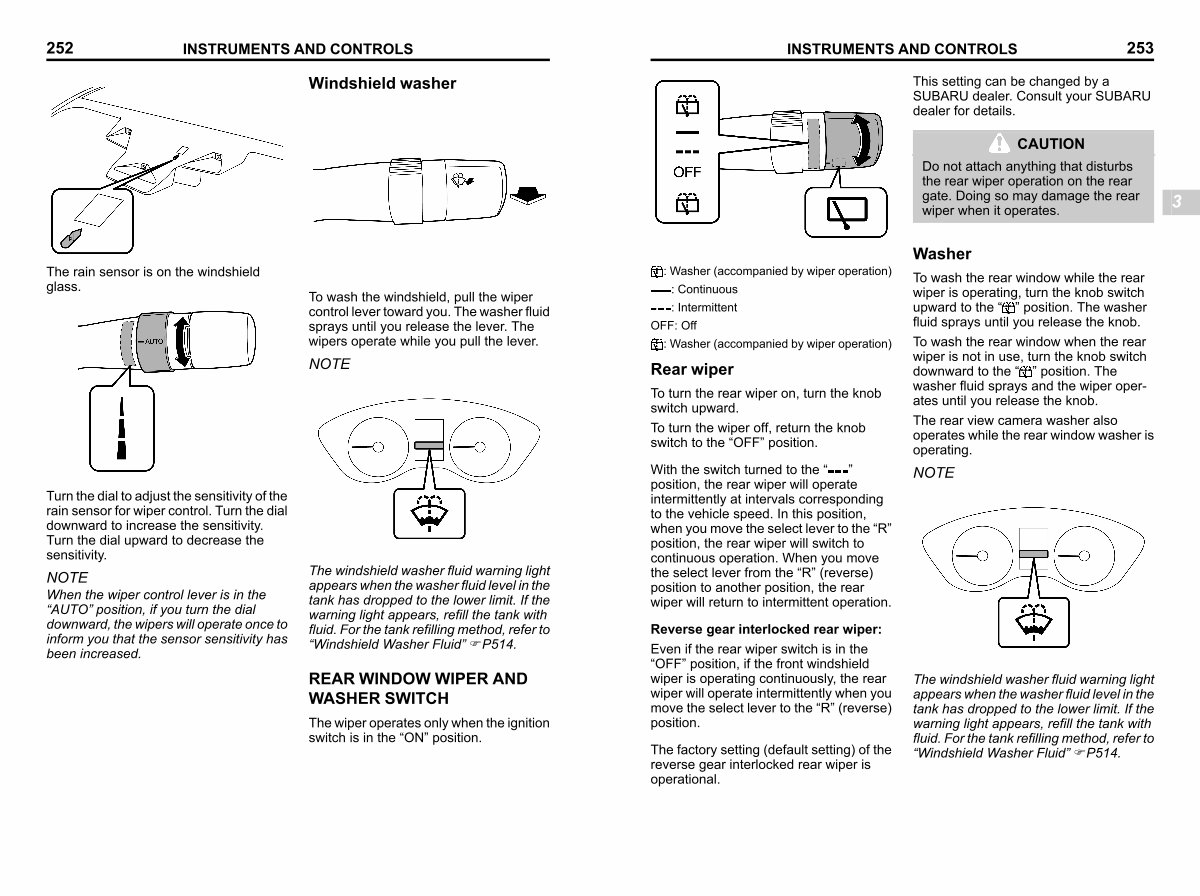

INSTRUMENTS AND CONTROLS Windshield washer s03am0104
S _ 307794-W
The rain sensor is on the windshield glass.
S _ 307650-W
To wash the windshield, pull the wiper control lever toward you. The washer fluid sprays until you release the lever. The wipers operate while you pull the lever.
NOTE
S _ 307795-W
Turn the dial to adjust the sensitivity of the rain sensor for wiper control. Turn the dial downward to increase the sensitivity. Turn the dial upward to decrease the sensitivity.
NOTE
When the wiper control lever is in the“ AUTO” position, if you turn the dial downward, the wipers will operate once to inform you that the sensor sensitivity has been increased.
S _ 307651-W
The windshield washer fluid warning light appears when the washer fluid level in the tank has dropped to the lower limit. If the warning light appears, refill the tank with fluid. For the tank refilling method, refer to“ Windshield Washer Fluid” FP514.
REAR WINDOW WIPER AND WASHER SWITCH s03am02
The wiper operates only when the ignition switch is in the“ ON” position.
