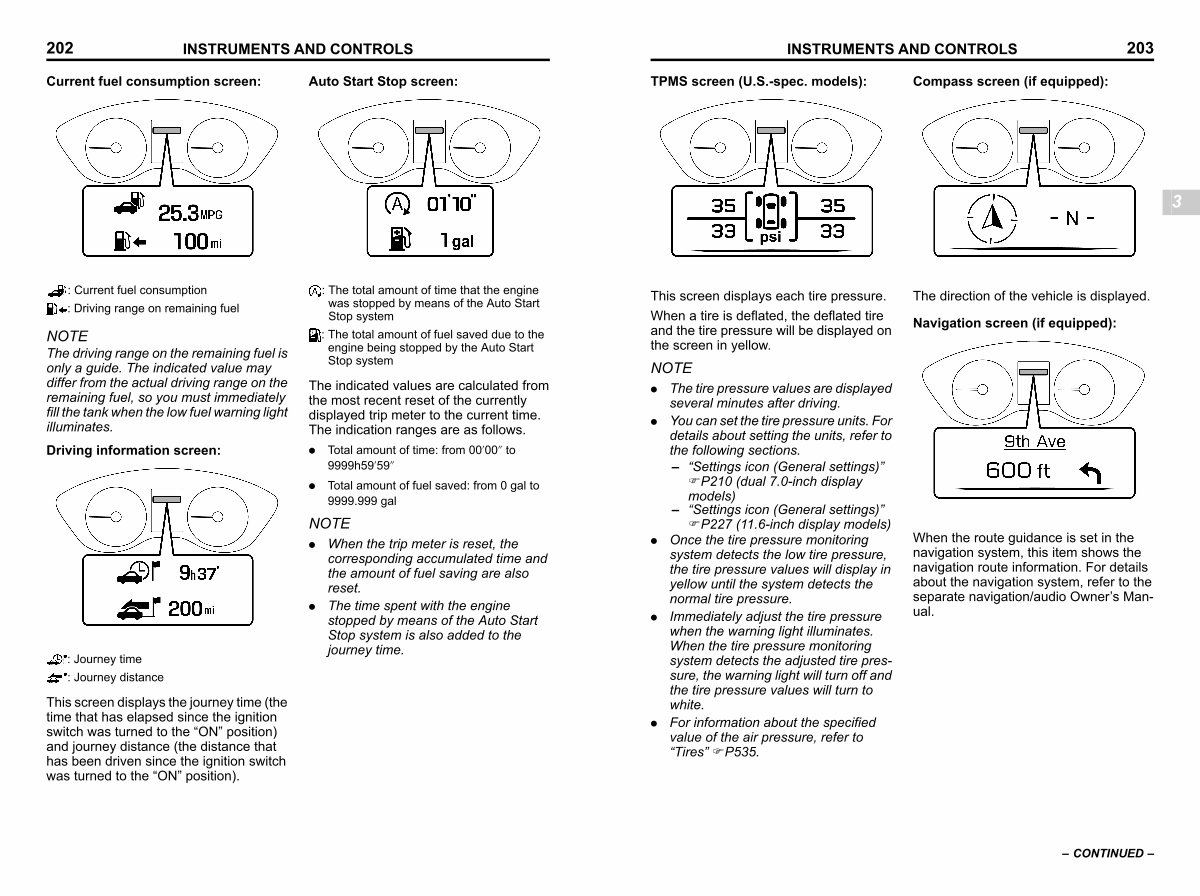

INSTRUMENTS AND CONTROLS 203 TPMS screen( U. S.-spec. models):
Compass screen( if equipped):
3
S _ 307558-W
This screen displays each tire pressure.
When a tire is deflated, the deflated tire and the tire pressure will be displayed on the screen in yellow.
NOTE
. The tire pressure values are displayed several minutes after driving.
. You can set the tire pressure units. For details about setting the units, refer to the following sections.
–“ Settings icon( General settings)” FP210( dual 7.0-inch display
models) –“ Settings icon( General settings)”
FP227( 11.6-inch display models)
. Once the tire pressure monitoring system detects the low tire pressure, the tire pressure values will display in yellow until the system detects the normal tire pressure.
. Immediately adjust the tire pressure when the warning light illuminates. When the tire pressure monitoring system detects the adjusted tire pressure, the warning light will turn off and the tire pressure values will turn to white.
. For information about the specified value of the air pressure, refer to“ Tires” FP535.
S _ 307559-W
The direction of the vehicle is displayed. Navigation screen( if equipped):
S _ 307560-W
When the route guidance is set in the navigation system, this item shows the navigation route information. For details about the navigation system, refer to the separate navigation / audio Owner’ s Manual.
– CONTINUED –
