INSTRUMENTS AND CONTROLS 173

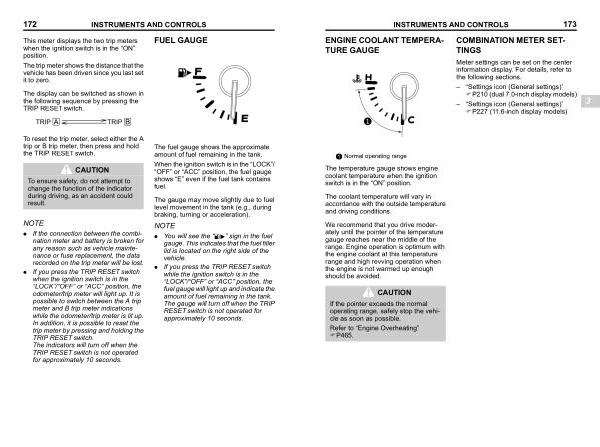

ENGINE COOLANT TEMPERA- TURE GAUGE s03ad08
COMBINATION METER SET- TINGS s03ad16
Meter settings can be set on the center information display . For details , refer to the following sections .
– “ Settings icon ( General settings )” FP210 ( dual 7.0-inch display models )
– “ Settings icon ( General settings )” FP227 ( 11.6-inch display models )
3
Normal operating range
S _ 307535-W
The temperature gauge shows engine coolant temperature when the ignition switch is in the “ ON ” position .
The coolant temperature will vary in accordance with the outside temperature and driving conditions .
We recommend that you drive moderately until the pointer of the temperature gauge reaches near the middle of the range . Engine operation is optimum with the engine coolant at this temperature range and high revving operation when the engine is not warmed up enough should be avoided .
CAUTION
If the pointer exceeds the normal operating range , safely stop the vehicle as soon as possible .
Refer to “ Engine Overheating ” FP465 .
