SEAT , SEATBELT AND SRS AIRBAGS 101

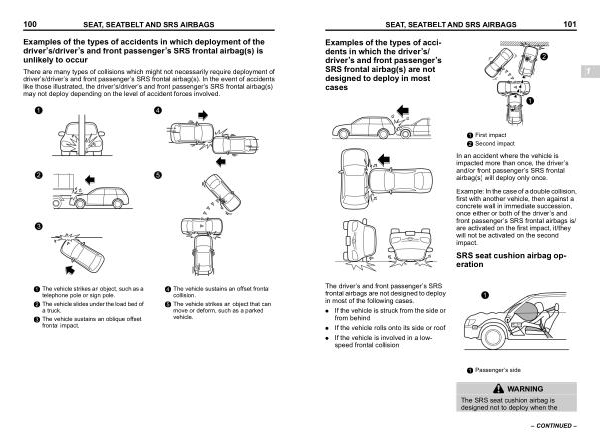

Examples of the types of accidents in which the driver ’ s / driver ’ s and front passenger ’ s SRS frontal airbag ( s ) are not designed to deploy in most cases s01ah0218
1
First impact Second impact
S _ 103234-MW
In an accident where the vehicle is impacted more than once , the driver ’ s and / or front passenger ’ s SRS frontal airbag ( s ) will deploy only once .
Example : In the case of a double collision , first with another vehicle , then against a concrete wall in immediate succession , once either or both of the driver ’ s and front passenger ’ s SRS frontal airbags is / are activated on the first impact , it / they will not be activated on the second impact .
S _ 103136-MW
The driver ’ s and front passenger ’ s SRS frontal airbags are not designed to deploy in most of the following cases .
. If the vehicle is struck from the side or from behind
. If the vehicle rolls onto its side or roof
. If the vehicle is involved in a lowspeed frontal collision
SRS seat cushion airbag operation s01ah0212
Passenger ’ s side
S _ 103235-W
WARNING
The SRS seat cushion airbag is designed not to deploy when the
– CONTINUED –
