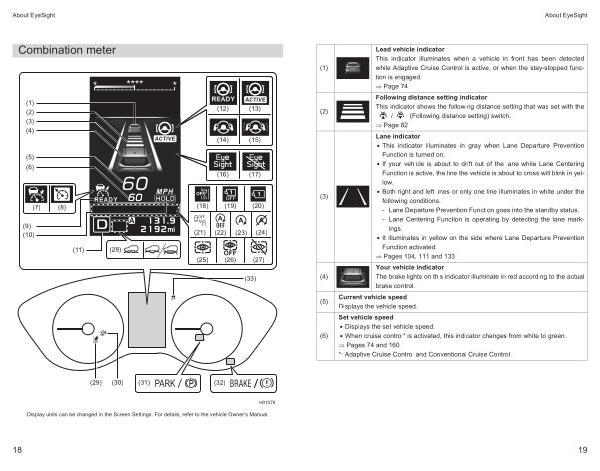

About EyeSight
( 1 )
( 2 )
( 3 )
( 4 )
( 5 )
( 6 )
Lead vehicle indicator This indicator illuminates when a vehicle in front has been detected while Adaptive Cruise Control is active , or when the stay-stopped function is engaged .
� Page 74 Following distance setting indicator This indicator shows the following distance setting that was set with the
/ ( Following distance setting ) switch .
� Page 82
Lane indicator
• This indicator illuminates in gray when Lane Departure Prevention Function is turned on .
• If your vehicle is about to drift out of the lane while Lane Centering Function is active , the line the vehicle is about to cross will blink in yellow .
• Both right and left lines or only one line illuminates in white under the following conditions . - Lane Departure Prevention Function goes into the standby status . - Lane Centering Function is operating by detecting the lane markings .
• It illuminates in yellow on the side where Lane Departure Prevention Function activated .
� Pages 104 , 111 and 133 Your vehicle indicator The brake lights on this indicator illuminate in red according to the actual brake control . Current vehicle speed Displays the vehicle speed . Set vehicle speed
• Displays the set vehicle speed .
• When cruise control * is activated , this indicator changes from white to green .
� Pages 74 and 160 *: Adaptive Cruise Control and Conventional Cruise Control
19
