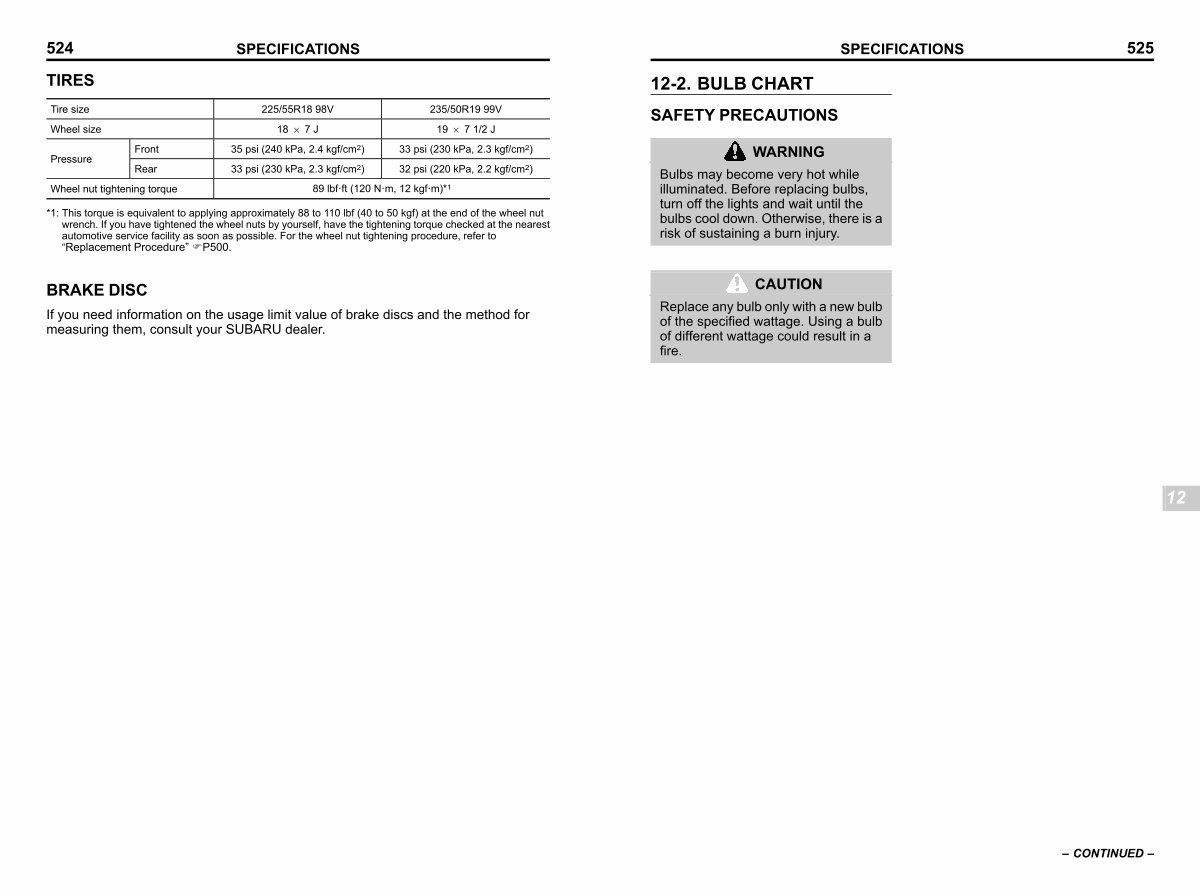

524 SPECIFICATIONS
TIRES
|
s12aa05 |
|
Tire size |
225 / 55R18 98V |
235 / 50R19 99V |
Wheel size 18 6 7 J 19 6 7 1 / 2 J
Pressure
Front 35 psi( 240 kPa, 2.4 kgf / cm 2) 33 psi( 230 kPa, 2.3 kgf / cm 2)
Rear 33 psi( 230 kPa, 2.3 kgf / cm 2) 32 psi( 220 kPa, 2.2 kgf / cm 2) Wheel nut tightening torque 89 lbf · ft( 120 N · m, 12 kgf · m)* 1
* 1: This torque is equivalent to applying approximately 88 to 110 lbf( 40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening procedure, refer to
“ Replacement Procedure” FP500.
BRAKE DISC s12aa18
If you need information on the usage limit value of brake discs and the method for measuring them, consult your SUBARU dealer.
