MAINTENANCE AND SERVICE 507

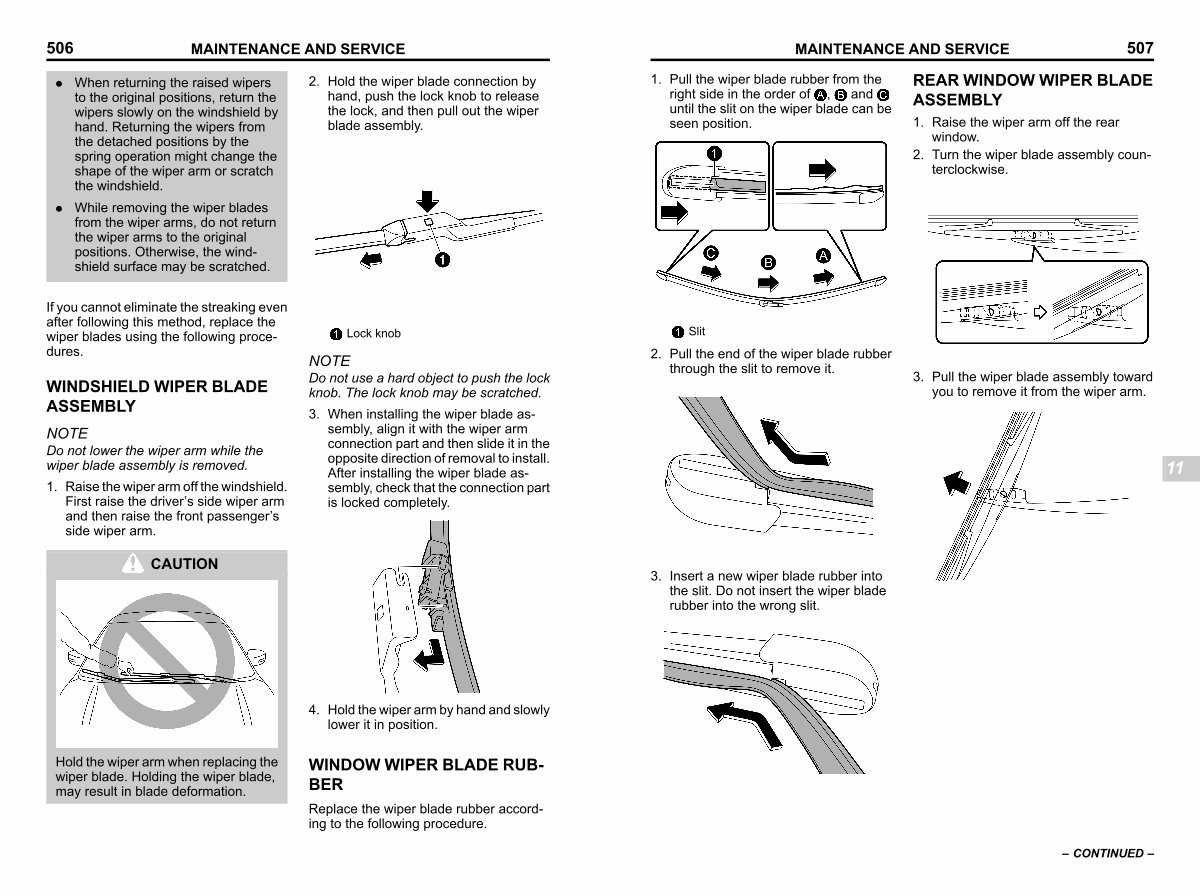

1. Pull the wiper blade rubber from the right side in the order of, and until the slit on the wiper blade can be seen position.
REAR WINDOW WIPER BLADE ASSEMBLY s11az03
1. Raise the wiper arm off the rear window.
2. Turn the wiper blade assembly counterclockwise.
Slit
S _ B02486-W
2. Pull the end of the wiper blade rubber through the slit to remove it.
S _ B02386-W
3. Pull the wiper blade assembly toward you to remove it from the wiper arm.
11
S _ B02384-W
3. Insert a new wiper blade rubber into the slit. Do not insert the wiper blade rubber into the wrong slit.
S _ B02387-W
S _ B02385-W
– CONTINUED –
