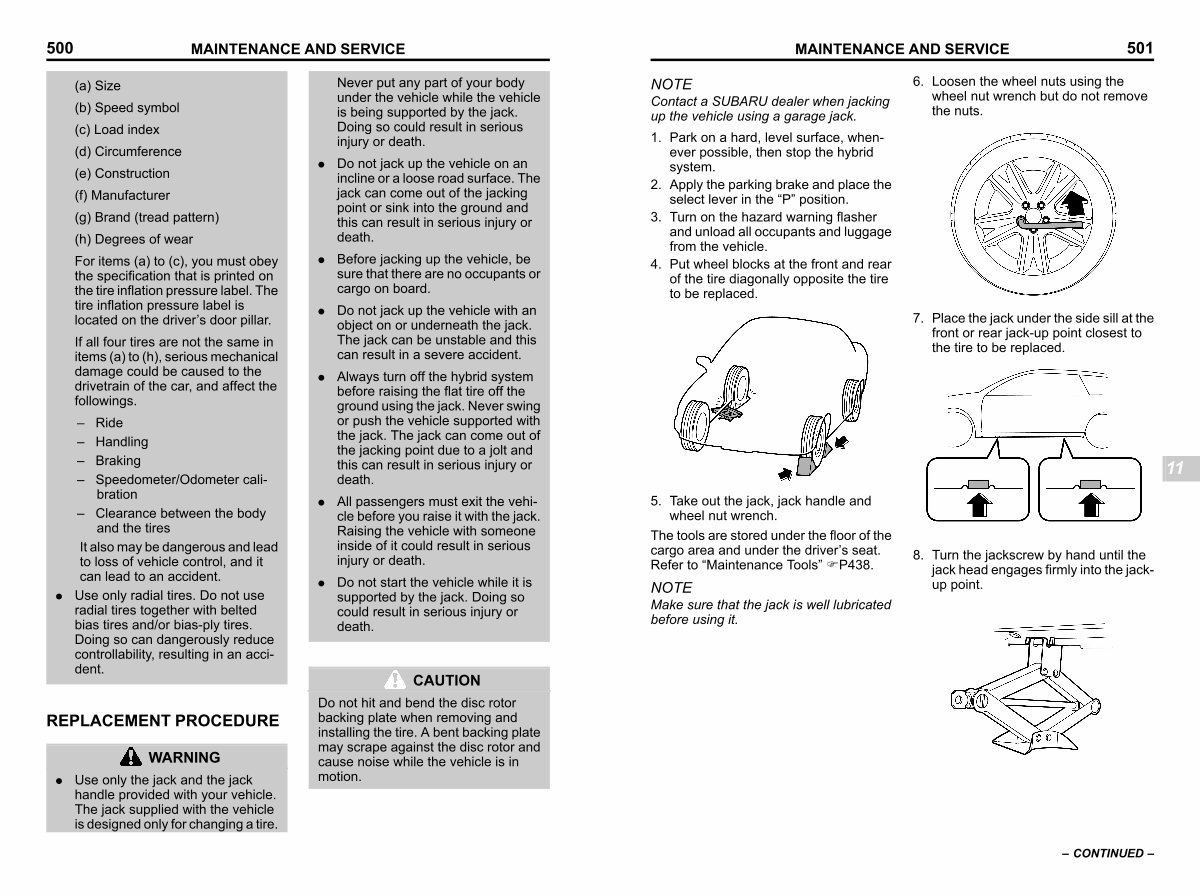

MAINTENANCE AND SERVICE 501
NOTE
Contact a SUBARU dealer when jacking up the vehicle using a garage jack.
1. Park on a hard, level surface, whenever possible, then stop the hybrid system.
2. Apply the parking brake and place the select lever in the“ P” position.
3. Turn on the hazard warning flasher and unload all occupants and luggage from the vehicle.
4. Put wheel blocks at the front and rear of the tire diagonally opposite the tire to be replaced.
6. Loosen the wheel nuts using the wheel nut wrench but do not remove the nuts.
S _ 901430-MW
7. Place the jack under the side sill at the front or rear jack-up point closest to the tire to be replaced.
S _ 901428-MW
5. Take out the jack, jack handle and wheel nut wrench.
The tools are stored under the floor of the cargo area and under the driver’ s seat. Refer to“ Maintenance Tools” FP438.
NOTE
Make sure that the jack is well lubricated before using it.
S _ 901426-W
8. Turn the jackscrew by hand until the jack head engages firmly into the jackup point.
11
S _ 901431-W
– CONTINUED –
