488
MAINTENANCE AND SERVICE

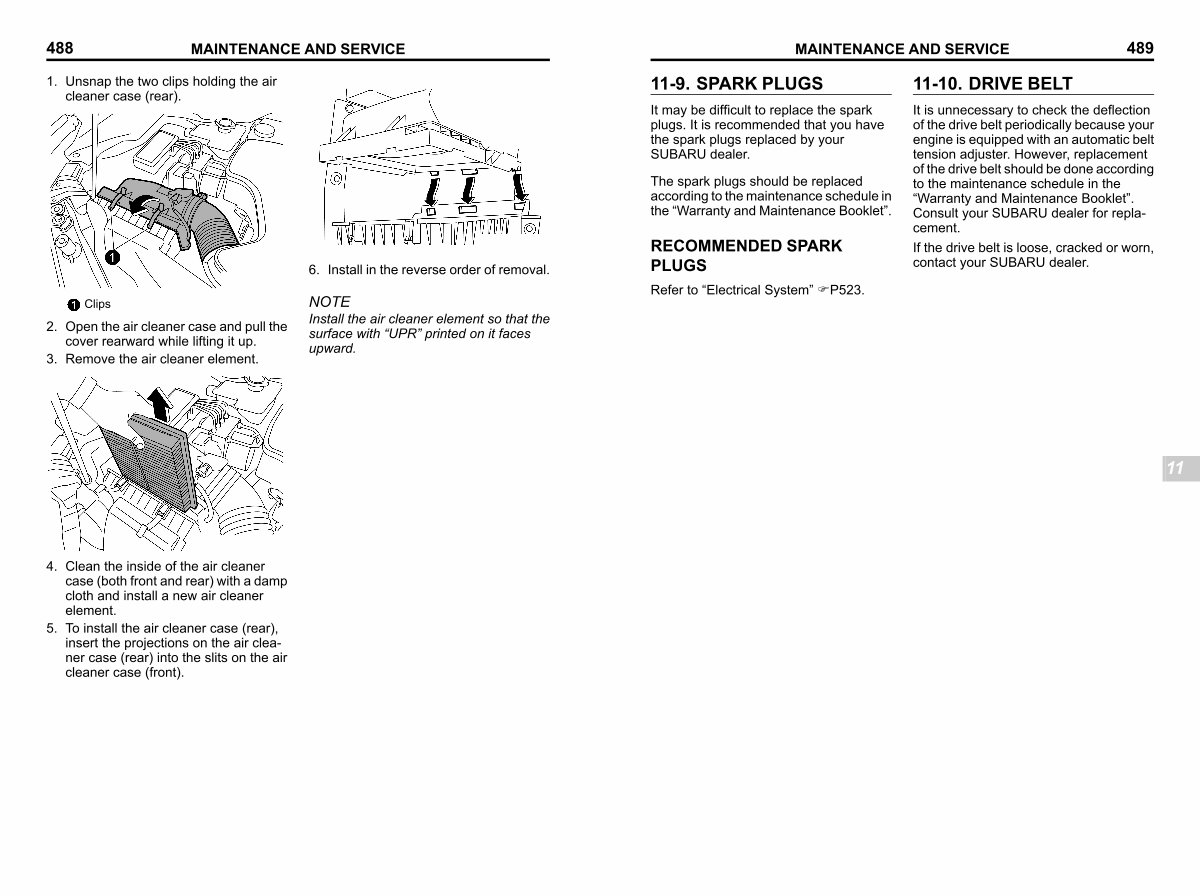

1. Unsnap the two clips holding the air cleaner case( rear).
Clips
S _ B02549-W
2. Open the air cleaner case and pull the cover rearward while lifting it up.
3. Remove the air cleaner element.
S _ B02551-W
6. Install in the reverse order of removal.
NOTE
Install the air cleaner element so that the surface with“ UPR” printed on it faces upward.
S _ B02550-W
4. Clean the inside of the air cleaner case( both front and rear) with a damp cloth and install a new air cleaner element.
5. To install the air cleaner case( rear), insert the projections on the air cleaner case( rear) into the slits on the air cleaner case( front).
