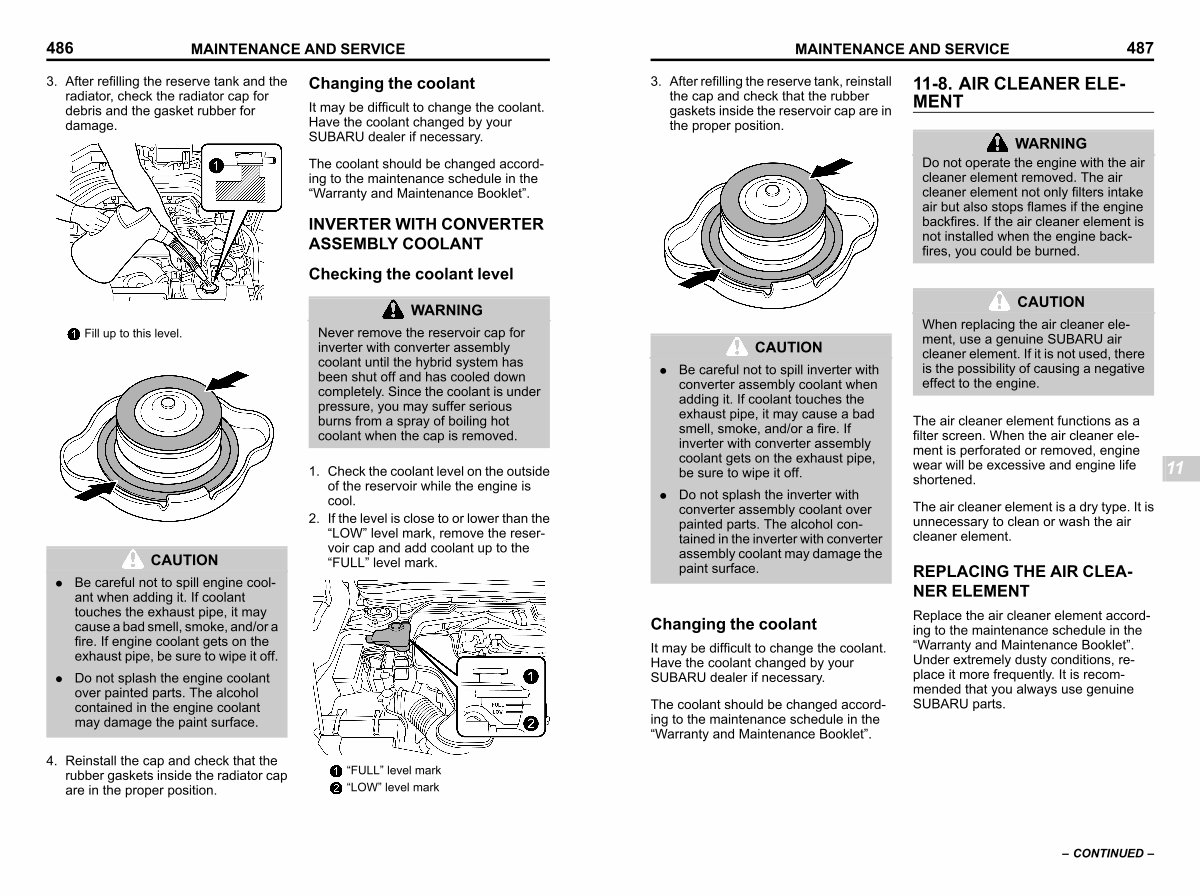

486
MAINTENANCE AND SERVICE
3. After refilling the reserve tank and the radiator, check the radiator cap for debris and the gasket rubber for damage.
Changing the coolant s11af0202
It may be difficult to change the coolant. Have the coolant changed by your SUBARU dealer if necessary.
Fill up to this level.
S _ B02477-W
The coolant should be changed according to the maintenance schedule in the“ Warranty and Maintenance Booklet”.
INVERTER WITH CONVERTER ASSEMBLY COOLANT s11af05
Checking the coolant level s11af0501
WARNING
Never remove the reservoir cap for inverter with converter assembly coolant until the hybrid system has been shut off and has cooled down completely. Since the coolant is under pressure, you may suffer serious burns from a spray of boiling hot coolant when the cap is removed.
S _ B02364-MW
CAUTION
. Be careful not to spill engine coolant when adding it. If coolant touches the exhaust pipe, it may cause a bad smell, smoke, and / or a fire. If engine coolant gets on the exhaust pipe, be sure to wipe it off.
. Do not splash the engine coolant over painted parts. The alcohol contained in the engine coolant may damage the paint surface.
1. Check the coolant level on the outside of the reservoir while the engine is cool.
2. If the level is close to or lower than the“ LOW” level mark, remove the reservoir cap and add coolant up to the“ FULL” level mark.
4. Reinstall the cap and check that the rubber gaskets inside the radiator cap are in the proper position.
“ FULL” level mark“ LOW” level mark
S _ B02508-W
