IN CASE OF EMERGENCY 451
5. After the engine has fully cooled down, check the coolant level in the reserve tank. If the coolant level is below the“ LOW” mark, add coolant up to the“ FULL” mark.
6. If there is no coolant in the reserve tank, add coolant to the reserve tank. Then remove the radiator cap and fill the radiator with coolant.

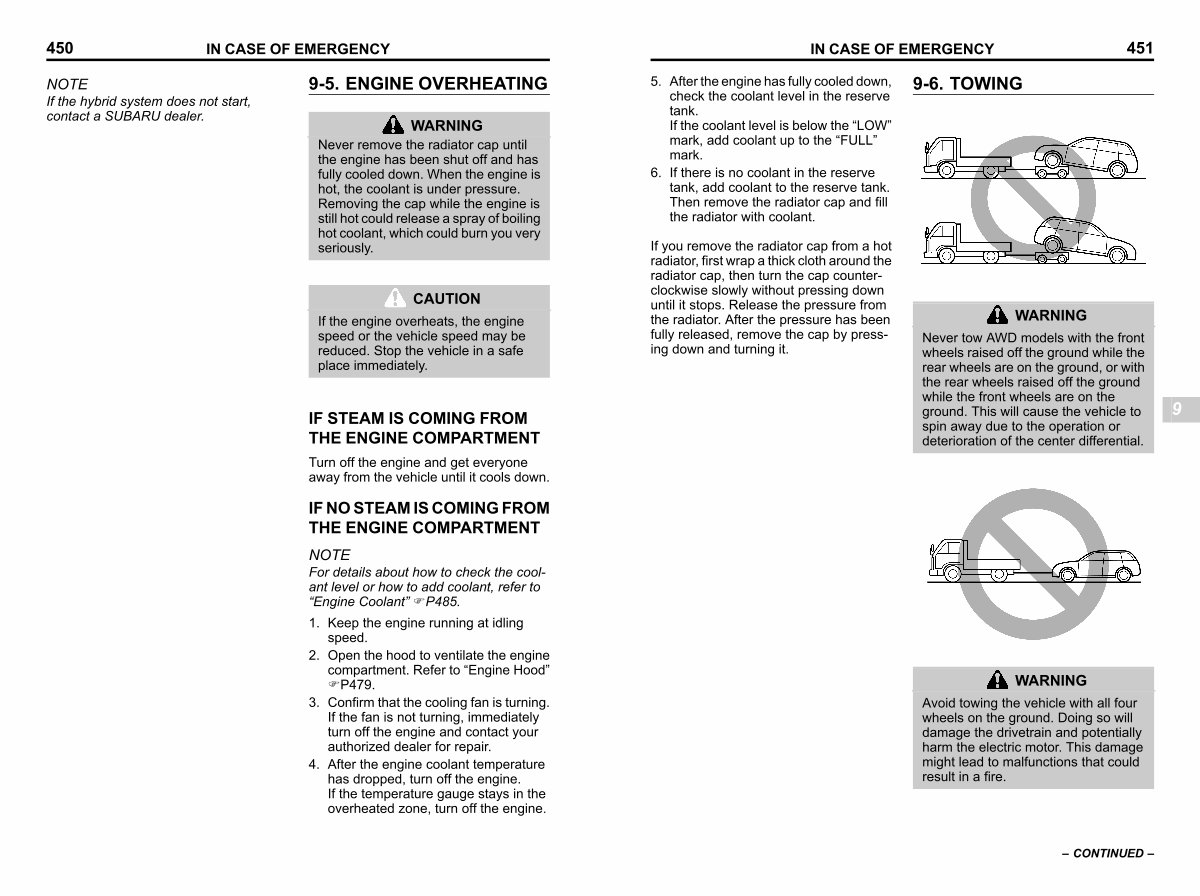

9-6. TOWING
s09af
If you remove the radiator cap from a hot radiator, first wrap a thick cloth around the radiator cap, then turn the cap counterclockwise slowly without pressing down until it stops. Release the pressure from the radiator. After the pressure has been fully released, remove the cap by pressing down and turning it.
S _ 901438-MW
WARNING
Never tow AWD models with the front wheels raised off the ground while the rear wheels are on the ground, or with the rear wheels raised off the ground while the front wheels are on the ground. This will cause the vehicle to spin away due to the operation or deterioration of the center differential.
9
S _ 901668-W
WARNING
Avoid towing the vehicle with all four wheels on the ground. Doing so will damage the drivetrain and potentially harm the electric motor. This damage might lead to malfunctions that could result in a fire.
– CONTINUED –
