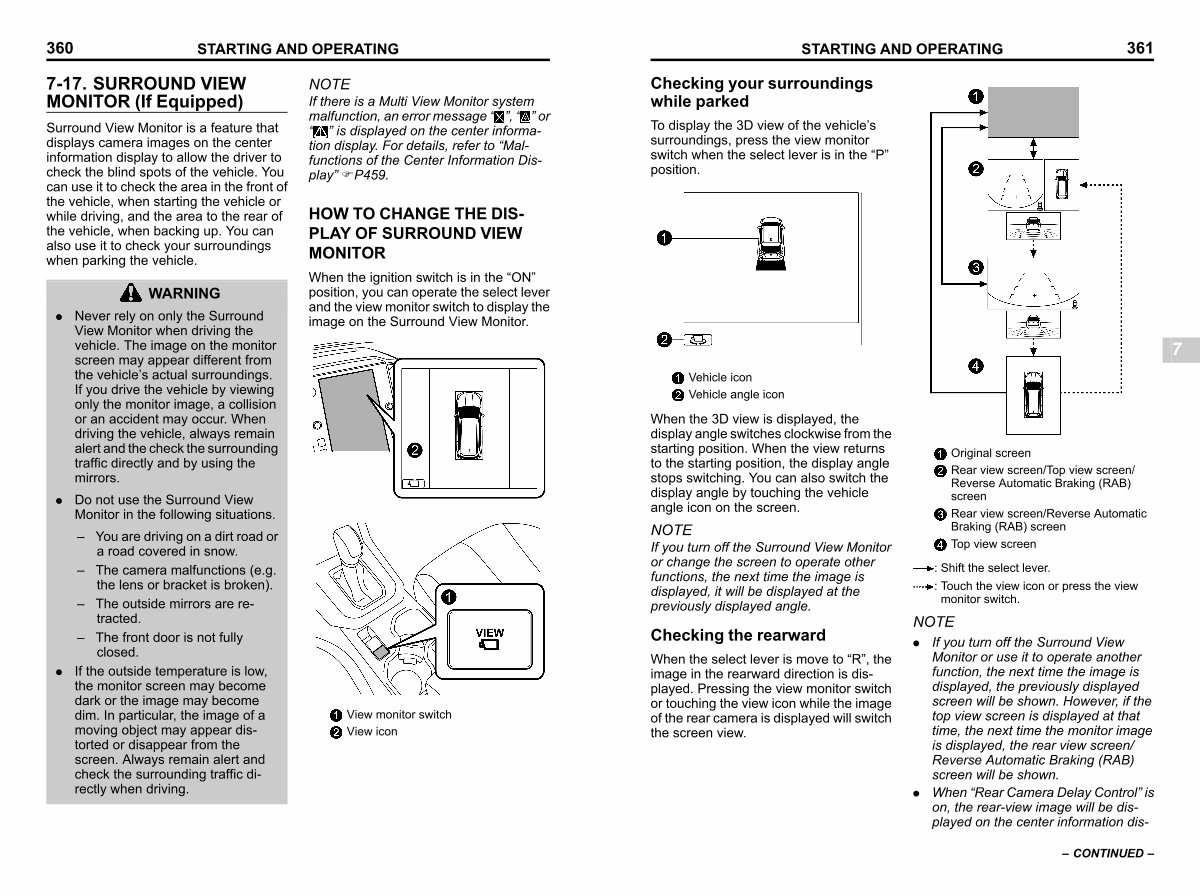

Checking your surroundings while parked s07bu0101
To display the 3D view of the vehicle’ s surroundings, press the view monitor switch when the select lever is in the“ P” position.
STARTING AND OPERATING 361
Vehicle icon Vehicle angle icon
S _ 703272-W
When the 3D view is displayed, the display angle switches clockwise from the starting position. When the view returns to the starting position, the display angle stops switching. You can also switch the display angle by touching the vehicle angle icon on the screen.
NOTE
If you turn off the Surround View Monitor or change the screen to operate other functions, the next time the image is displayed, it will be displayed at the previously displayed angle.
Checking the rearward s07bu0102
When the select lever is move to“ R”, the image in the rearward direction is displayed. Pressing the view monitor switch or touching the view icon while the image of the rear camera is displayed will switch the screen view.
S _ 703273-W
Original screen
Rear view screen / Top view screen / Reverse Automatic Braking( RAB) screen
Rear view screen / Reverse Automatic Braking( RAB) screen
Top view screen
: Shift the select lever.
: Touch the view icon or press the view monitor switch.
NOTE
. If you turn off the Surround View Monitor or use it to operate another function, the next time the image is displayed, the previously displayed screen will be shown. However, if the top view screen is displayed at that time, the next time the monitor image is displayed, the rear view screen / Reverse Automatic Braking( RAB) screen will be shown.
. When“ Rear Camera Delay Control” is on, the rear-view image will be displayed on the center information dis-
7
– CONTINUED –
