326
STARTING AND OPERATING

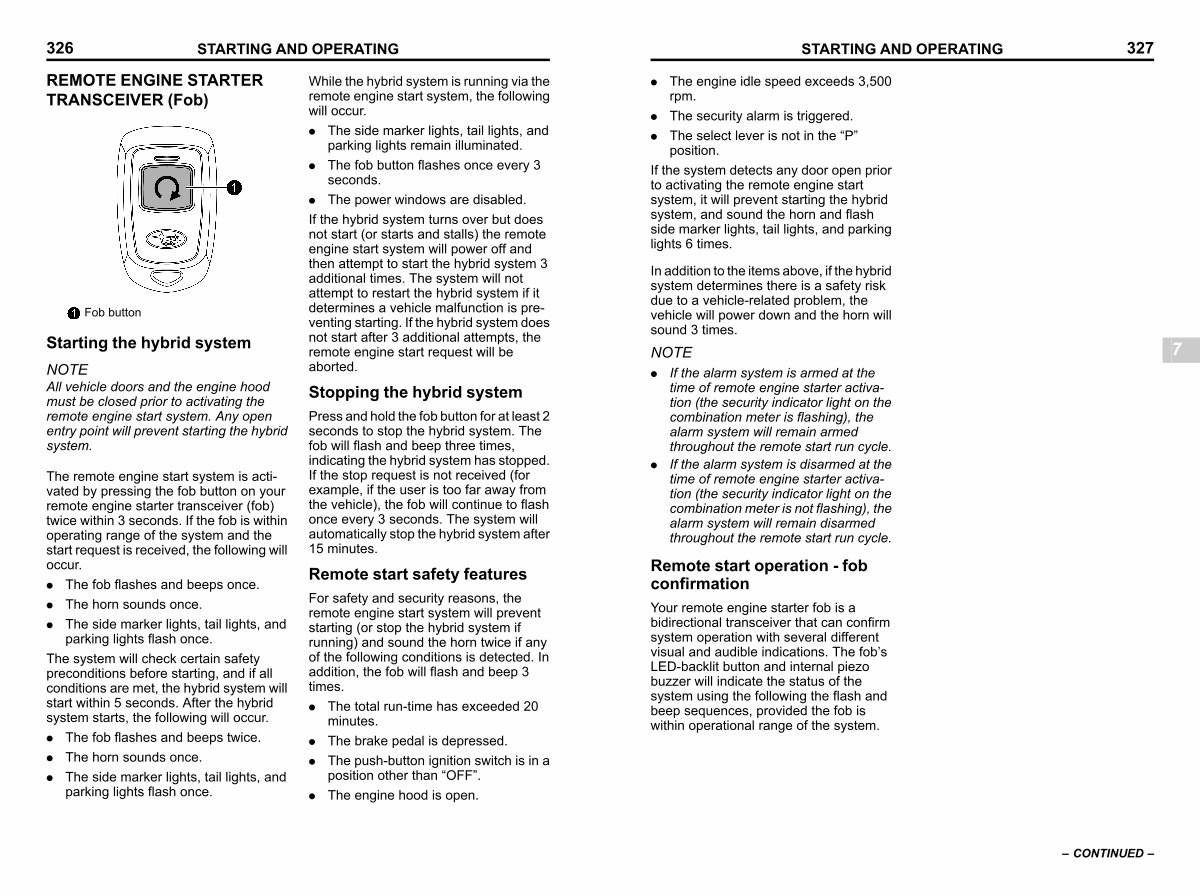

REMOTE ENGINE STARTER TRANSCEIVER( Fob) s07az21
Fob button
S _ 703262-MW
Starting the hybrid system s07az2101
NOTE
All vehicle doors and the engine hood must be closed prior to activating the remote engine start system. Any open entry point will prevent starting the hybrid system.
The remote engine start system is activated by pressing the fob button on your remote engine starter transceiver( fob) twice within 3 seconds. If the fob is within operating range of the system and the start request is received, the following will occur.
. The fob flashes and beeps once.. The horn sounds once.
. The side marker lights, tail lights, and parking lights flash once.
The system will check certain safety preconditions before starting, and if all conditions are met, the hybrid system will start within 5 seconds. After the hybrid system starts, the following will occur.
. The fob flashes and beeps twice.. The horn sounds once.
. The side marker lights, tail lights, and parking lights flash once.
While the hybrid system is running via the remote engine start system, the following will occur.
. The side marker lights, tail lights, and parking lights remain illuminated.
. The fob button flashes once every 3 seconds.
. The power windows are disabled.
If the hybrid system turns over but does not start( or starts and stalls) the remote engine start system will power off and then attempt to start the hybrid system 3 additional times. The system will not attempt to restart the hybrid system if it determines a vehicle malfunction is preventing starting. If the hybrid system does not start after 3 additional attempts, the remote engine start request will be aborted.
Stopping the hybrid system s07az2102
Press and hold the fob button for at least 2 seconds to stop the hybrid system. The fob will flash and beep three times, indicating the hybrid system has stopped. If the stop request is not received( for example, if the user is too far away from the vehicle), the fob will continue to flash once every 3 seconds. The system will automatically stop the hybrid system after 15 minutes.
Remote start safety features s07az2103
For safety and security reasons, the remote engine start system will prevent starting( or stop the hybrid system if running) and sound the horn twice if any of the following conditions is detected. In addition, the fob will flash and beep 3 times.
. The total run-time has exceeded 20 minutes.
. The brake pedal is depressed.
. The push-button ignition switch is in a position other than“ OFF”.
. The engine hood is open.
