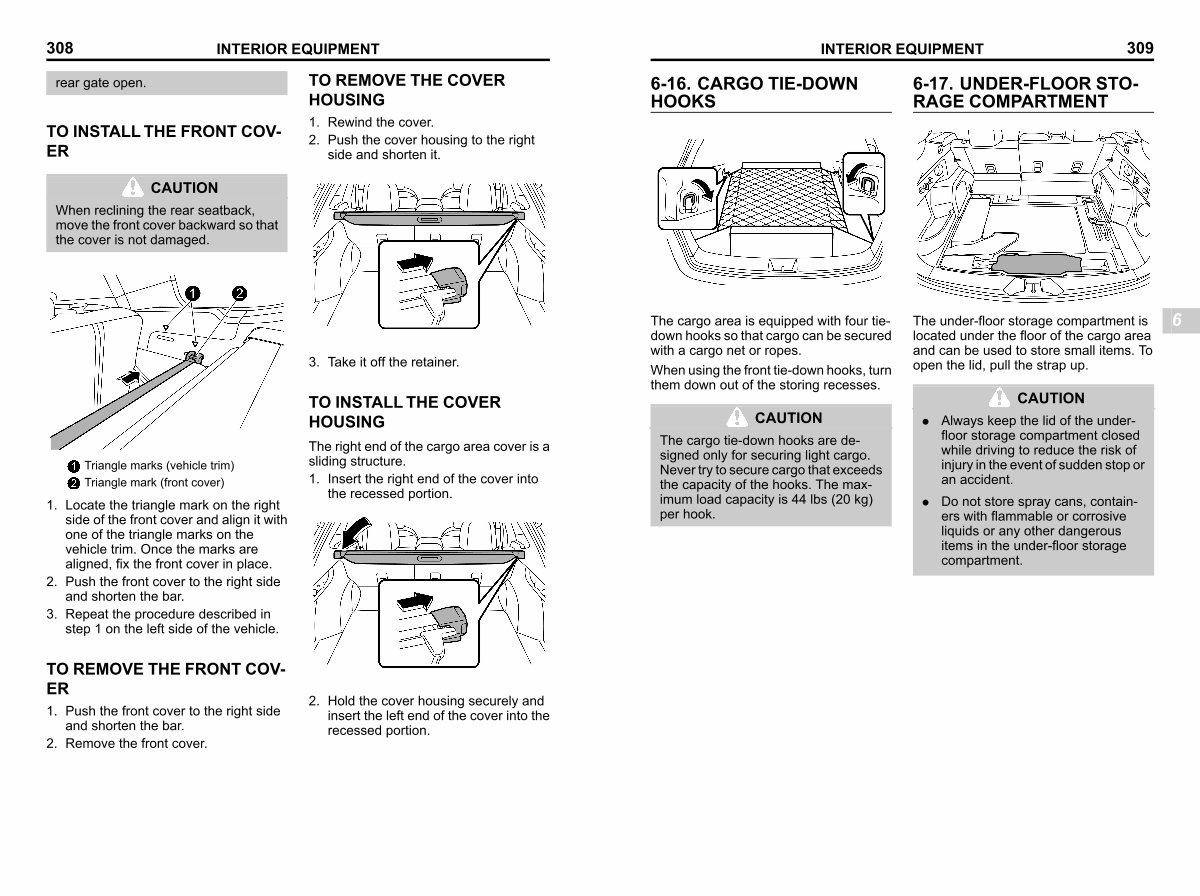

308
INTERIOR EQUIPMENT rear gate open.
TO INSTALL THE FRONT COV- ER s06ak08
CAUTION
When reclining the rear seatback, move the front cover backward so that the cover is not damaged.
TO REMOVE THE COVER HOUSING
1. Rewind the cover.
2. Push the cover housing to the right side and shorten it. s06ak02
3. Take it off the retainer.
S _ 602670-W
S _ 602828-W
Triangle marks( vehicle trim) Triangle mark( front cover)
1. Locate the triangle mark on the right side of the front cover and align it with one of the triangle marks on the vehicle trim. Once the marks are aligned, fix the front cover in place.
2. Push the front cover to the right side and shorten the bar.
3. Repeat the procedure described in step 1 on the left side of the vehicle.
TO INSTALL THE COVER HOUSING s06ak05
The right end of the cargo area cover is a sliding structure.
1. Insert the right end of the cover into the recessed portion.
TO REMOVE THE FRONT COV- ER s06ak09
1. Push the front cover to the right side and shorten the bar.
2. Remove the front cover.
S _ 602674-W
2. Hold the cover housing securely and insert the left end of the cover into the recessed portion.
