214
INSTRUMENTS AND CONTROLS

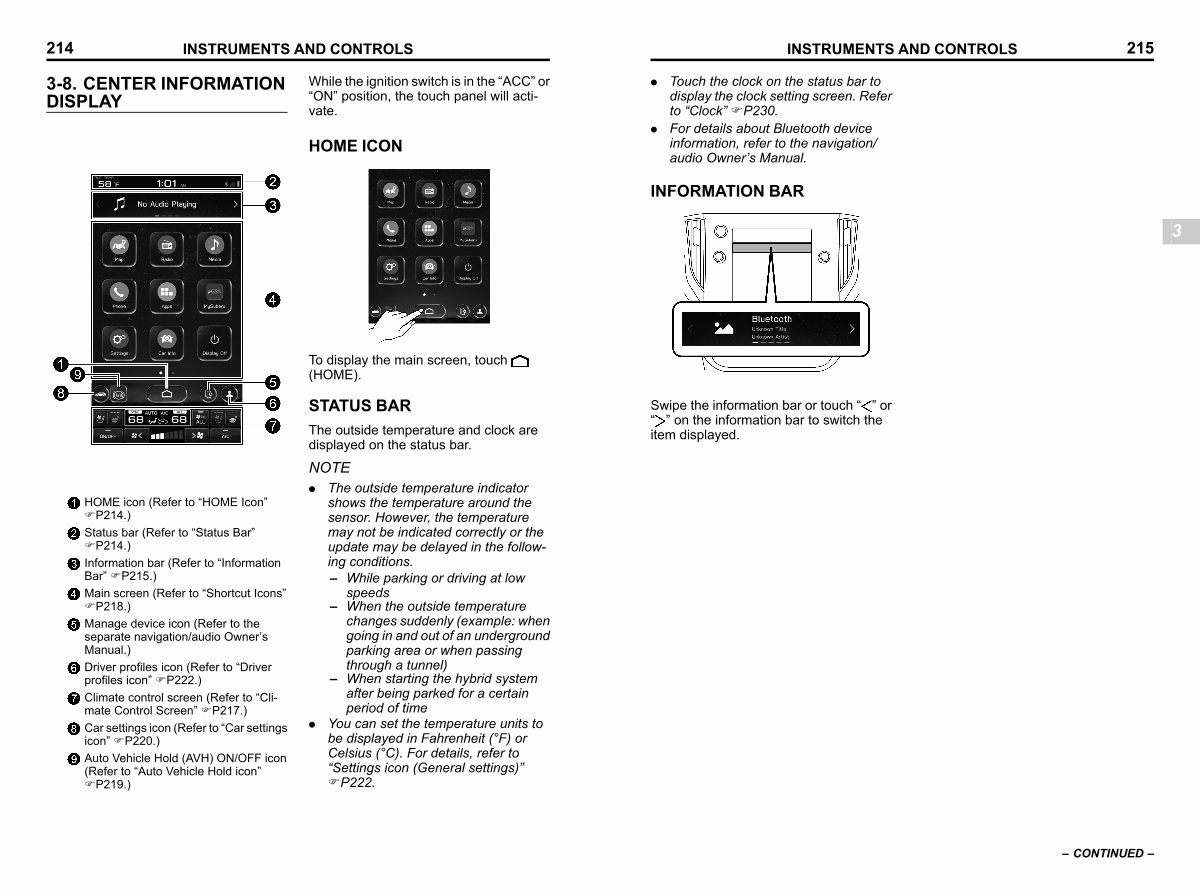

3-8. CENTER INFORMATION DISPLAY
s03bx
While the ignition switch is in the“ ACC” or“ ON” position, the touch panel will activate.
HOME ICON s03bx01
To display the main screen, touch( HOME).
S _ 308243-W
S _ 308070-W
HOME icon( Refer to“ HOME Icon” FP214.)
Status bar( Refer to“ Status Bar” FP214.)
Information bar( Refer to“ Information Bar” FP215.)
Main screen( Refer to“ Shortcut Icons” FP218.)
Manage device icon( Refer to the separate navigation / audio Owner’ s Manual.)
Driver profiles icon( Refer to“ Driver profiles icon” FP222.)
Climate control screen( Refer to“ Climate Control Screen” FP217.)
Car settings icon( Refer to“ Car settings icon” FP220.)
Auto Vehicle Hold( AVH) ON / OFF icon( Refer to“ Auto Vehicle Hold icon” FP219.)
STATUS BAR s03bx02
The outside temperature and clock are displayed on the status bar.
NOTE
. The outside temperature indicator shows the temperature around the sensor. However, the temperature may not be indicated correctly or the update may be delayed in the following conditions.
– While parking or driving at low
speeds – When the outside temperature
changes suddenly( example: when going in and out of an underground parking area or when passing
through a tunnel) – When starting the hybrid system
after being parked for a certain period of time
. You can set the temperature units to be displayed in Fahrenheit(° F) or Celsius(° C). For details, refer to“ Settings icon( General settings)” FP222.
